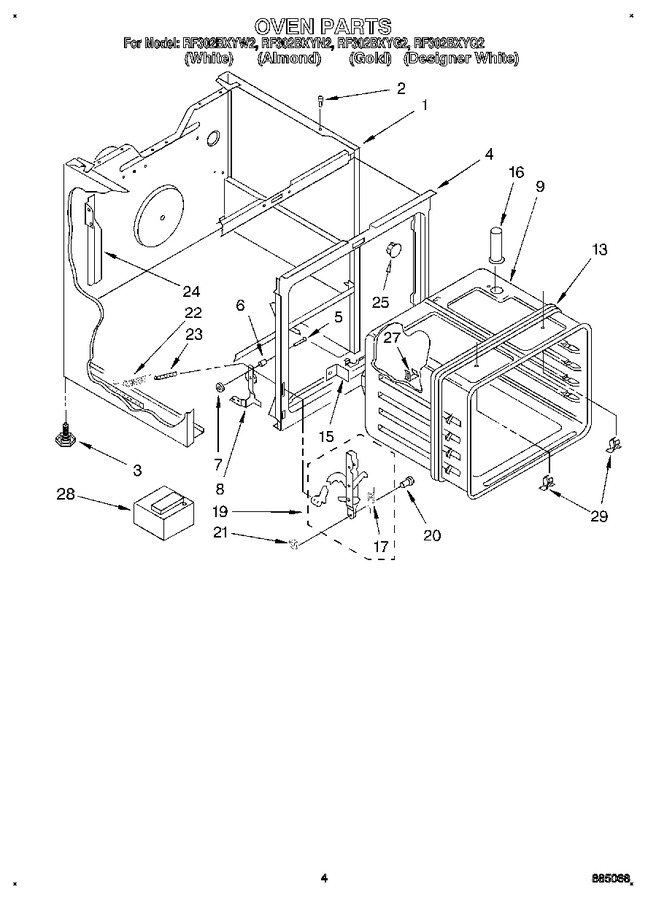

04 - Oven
05 - Unit
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 330086 | Main Chassis (white) |
|
- | |||||
| 1 | 330089 | Main Chassis (gold) |
|
- | |||||
| 1 | 330090 | Main Chassis (almond) |
|
- | |||||
| 1 | WP681414 | Main Chassis (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.85 | ||||
| 2 | 238614 | Bumper (2) |
|
$ 80.76 | |||||
| 3 | WPW10058460 | Leg Leveling (4) (Replaces: 312701) |
|
Immediately | $ 7.85 | ||||
| 4 | 311056 | Screw (2) |
|
- | |||||
| 4 | 3176714 | Frame, Front |
|
- | |||||
| 4 | 3150537 | Screw (1) |
|
- | |||||
| 5 | 307985 | Pin, Hinge (2) |
|
$ 29.54 | |||||
| 6 | 309111 | Snubber, Door (2) |
|
- | |||||
| 7 | 308306 | Pushnut |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 8 | 3176711 | Hinge, L.h. |
|
- | |||||
| 8 | 3176710 | Hinge, R.h. |
|
- | |||||
| 9 | 3176612 | Oven (30`` Conv.) |
|
- | |||||
| 9 | 311056 | Screw (3) |
|
- | |||||
| 13 | 3169283 | Seal |
|
- | |||||
| 15 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 15 | 311220 | Bracket, Oven (mounting) |
|
- | |||||
| 16 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 16 | 9755804 | Vent, Oven (Replaces: 3169143) |
|
$ 123.68 | |||||
| 17 | 308207 | Spring, Door Stop |
|
- | |||||
| 19 | 3176708 | Channel, Arm (2) |
|
- | |||||
| 20 | WP307986 | Hinge Pin (2) (Replaces: 307986) |
|
$ 13.09 | |||||
| 21 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 22 | 308127 | Spring, Oven Door (2) |
|
$ 11.75 | |||||
| 23 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 12.16 | |||||
| 24 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 24 | 313197 | Support, R.h. Channel |
|
- | |||||
| 24 | 313196 | Support, L.h. Channel |
|
- | |||||
| 25 | 308535 | Plug Button |
|
- | |||||
| 27 | 98005642 | Clip, Therm Bulb (2) (Replaces: 313382) |
|
Immediately | $ 82.93 | ||||
| 28 | 3149258 | Block, Balance |
|
- | |||||
| 28 | 340184 | Screw 10-16 X 11/2 |
|
$ 13.44 | |||||
| 29 | 3169107 | Plug, Button (2) |
|
- |
