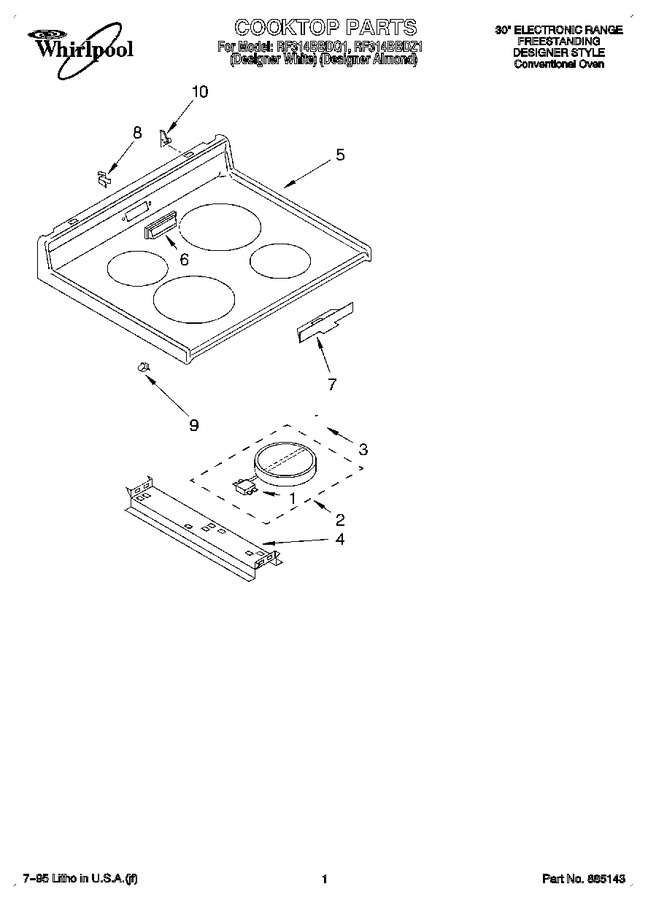

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Unit


05 - Oven


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169554		Limiter, Temp. (2100w, Lf-rr)		Appelez-nous	-
1	3169553		Limiter, Temp. (1700w, Rf-lr)		Appelez-nous	-
2	3169544		Element, Surface (includes No.1) (1700w, Rf-lr)		Appelez-nous	-
2	3169545		Element, Surface (includes No.1) (2100w, Lf-rr)		Appelez-nous	-
3	WP486754		Screw (8)   (Replaces: 246119)				$ 8.01
3	3149191		Spring (8)				$ 9.45
4	3183087		Bracket, (2) Element Support		Appelez-nous	-
4	3149333		Screw (4)				$ 5.33
5	WP308685		Cooktop Asm. (screw, (2))   (Replaces: 3367670)			Immediately	$ 7.87
5	3184124		Cooktop Asm. (white Mdl.)		Appelez-nous	-
5	3176849		Cooktop Asm. (almond Mdl.)		Appelez-nous	-
6	3149012		Cover, Vent (almond)		Appelez-nous	-
6	3149011		Cover, Vent (white)		Appelez-nous	-
7	3183510		Shield, Probe		Appelez-nous	-
8	3149190		Clip, Mounting (2) (vent Cover)		Appelez-nous	-
9	311311		Clip, Wire		Appelez-nous	-
10	WP681414		Bracket, Cooktop (screw, 10x1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
10	3169295		Bracket, Cooktop (left)		Appelez-nous	-
10	3169294		Bracket, Cooktop (right)		Appelez-nous	-
	LIT3187321		Instructions, Installation		Appelez-nous	-
	LIT677973		Manual, Range		Appelez-nous	-
	LIT3169510		Wiring Diagram		Appelez-nous	-
	LIT3189069		Use And Care Guide		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
