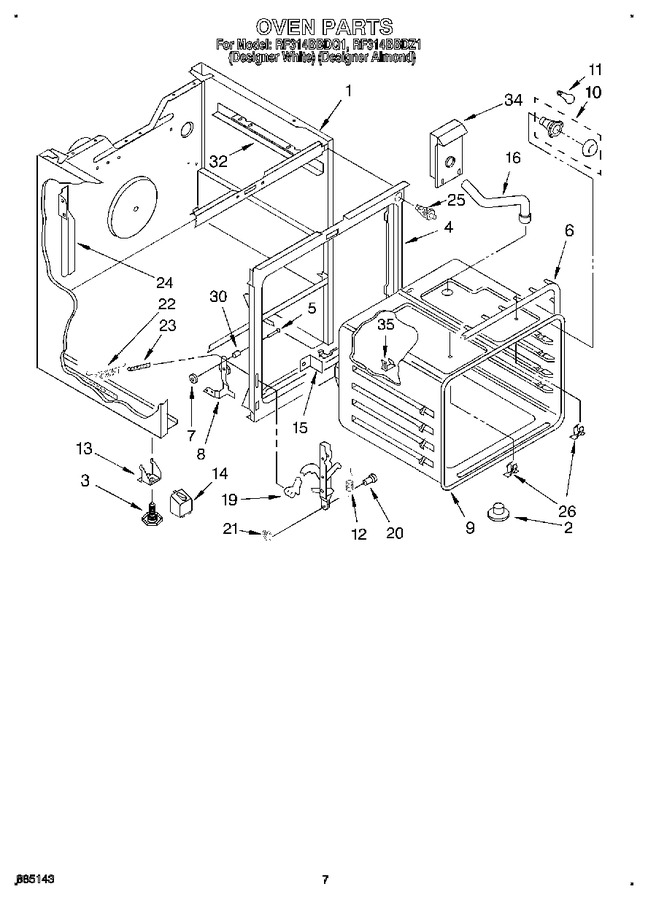

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330086		Main Chassis (white)		Appelez-nous	-
2	307748		Screw (8)		Appelez-nous	-
2	3169144		Tube, Vent		Appelez-nous	-
3	3169499		Leg Leveling (4)		Appelez-nous	-
4	3150537		Screw (1)		Appelez-nous	-
4	3176714		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge (2)				$ 29.54
6	3169283		Seal, Door		Appelez-nous	-
7	308306		Pushnut (2)		Appelez-nous	-
8	3176711		Hinge, L.h.		Appelez-nous	-
8	3176710		Hinge, R.h.		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
9	3176611		Oven (30`` Pyro)		Appelez-nous	-
10	W11594027		Socket, Lamp   (Replaces: 3150505)			Immediately	$ 87.01
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
12	308207		Spring, Door Stop		Appelez-nous	-
13	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.85
13	3169418		Support, Foot (2)		Appelez-nous	-
14	3169448		Cover, Foot (2)		Appelez-nous	-
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
16	3169365		Vent, Oven		Appelez-nous	-
16	WP965173		Screw,   (Replaces: 246132)			Immediately	$ 10.72
19	3176708		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 13.09
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.16
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
24	313196		Support, L.h. Post		Appelez-nous	-
24	313197		Support, R.h. Post		Appelez-nous	-
25	310345		Switch, Door				$ 94.86
26	3169107		Plug, Button (2)		Appelez-nous	-
30	309111		Snubber, Door (2)		Appelez-nous	-
32	3147646		Support, Chassis		Appelez-nous	-
32	WP3390631		Screw (4)   (Replaces: 309112)				$ 7.82
34	WP488627		Screw (2)   (Replaces: 313349)				$ 7.57
34	3169278		Vent, Box		Appelez-nous	-
35	309961		Insulation, Wrapper		Appelez-nous	-
35	98005642		Clip, Therm Bulb   (Replaces: 313382)			Immediately	$ 82.93
