SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet/drain Block And Control Assy


03 - Door Assemblies And Handles


04 - Door Hinges And Freezer Shelf


05 - Evaporator And Fan Motor Assemblies


06 - Ice Maker Assembly Parts


07 - Ladders, Lower Cabinet And Rollers


08 - Machine Compartment


09 - Shelving Assemblies

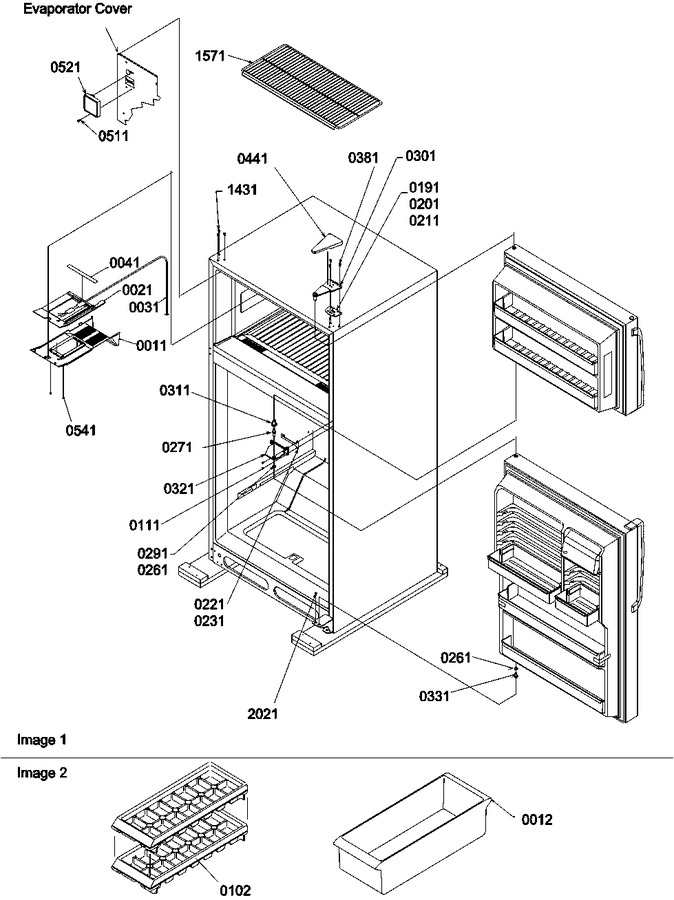

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10440406		Duct, Frz Air		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
21	10779602		Insul. Air Duct		Appelez-nous	-
31	12172601		Harness, Cabinet		Appelez-nous	-
41	B8386613		Gasket		Appelez-nous	-
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
111	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
191	10448501		Shim, Top Hinge		Appelez-nous	-
201	10448502		Shim, Top Hinge		Appelez-nous	-
211	10448503		Shim, Top Hinge		Appelez-nous	-
221	10562207		Shim, Ctr Hinge (white)		Appelez-nous	-
231	10562208		Shim, Ctr. Hinge		Appelez-nous	-
261	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
271	10351002		Pin, Hinge (ctr)		Appelez-nous	-
291	M0274058		Shim, Non Metal (wht)				$ 5.83
301	5303918507		Assy, Top Hinge   (Replaces: 12077303)				$ 956.29
311	12028501		Closure, Door (wht)				$ 6.67
321	12446503		Hinge,ctr-e Ct(white)		Appelez-nous	-
331	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
441	10444709		Cover, Hinge (almond)		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
521	D7874403		Cover-fl Tb/plug		Appelez-nous	-
541	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1431	M0310730		Plug Button (almond)		Appelez-nous	-
1571	Y10440001		Shelf, Wire Frz. (18)		Appelez-nous	-
2021	M0310330		Plug, Button White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
