SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet/drain Block And Control Assy


03 - Door Assemblies And Handles


04 - Door Hinges And Freezer Shelf

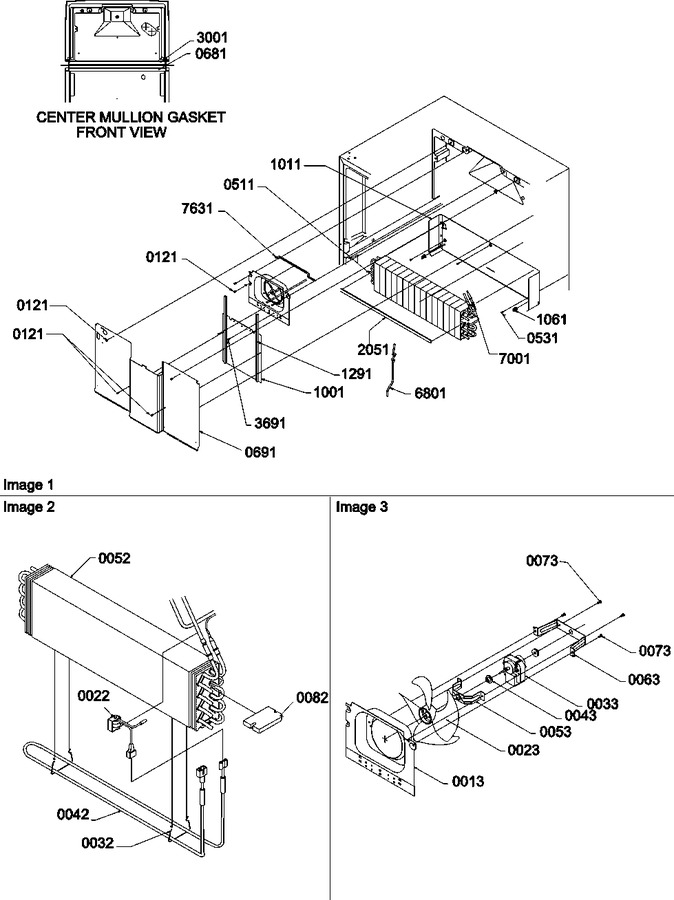

05 - Evaporator And Fan Motor Assemblies


06 - Ice Maker Assembly Parts


07 - Ladders, Lower Cabinet And Rollers


08 - Machine Compartment


09 - Shelving Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10422304		Shroud, Evap. Fan		Appelez-nous	-
22	10442408		Thermostat		Appelez-nous	-
23	W10116797		Assy, Fan-evap   (Replaces: 10855401)			Immediately	$ 8.56
32	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
33	WP10449501		Motor-evap Fan   (Replaces: 10449501)				$ 240.54
42	10991105		Heater, Evaporator		Appelez-nous	-
43	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
52	R0170058		Assy,low Side(tsi18a3)		Appelez-nous	-
53	10492801		Brkt, Up Evap. Fan				$ 5.27
63	10492701		Brkt, Lwr. Evap. Fan				$ 5.27
73	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
82	10991002		Block, R Evap.		Appelez-nous	-
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
511	10428301		Block, Evap. L.		Appelez-nous	-
531	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
681	10685507		Gasket, Sealing		Appelez-nous	-
691	10432402		Cover, Evaporator		Appelez-nous	-
1001	10440713		Cover, Evaporator		Appelez-nous	-
1011	10427710		Shield, Evap.		Appelez-nous	-
1061	10442301		Clip, Evaporator		Appelez-nous	-
1291	A3030356		Gasket		Appelez-nous	-
2051	A3189349		Gasket, Foam		Appelez-nous	-
3001	B5759626		Gasket, Sealing		Appelez-nous	-
3691	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
6801	10586601		Clip, Ht Transfer		Appelez-nous	-
7001	M0321210		Tie, Elec		Appelez-nous	-
7631	A3030354		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
