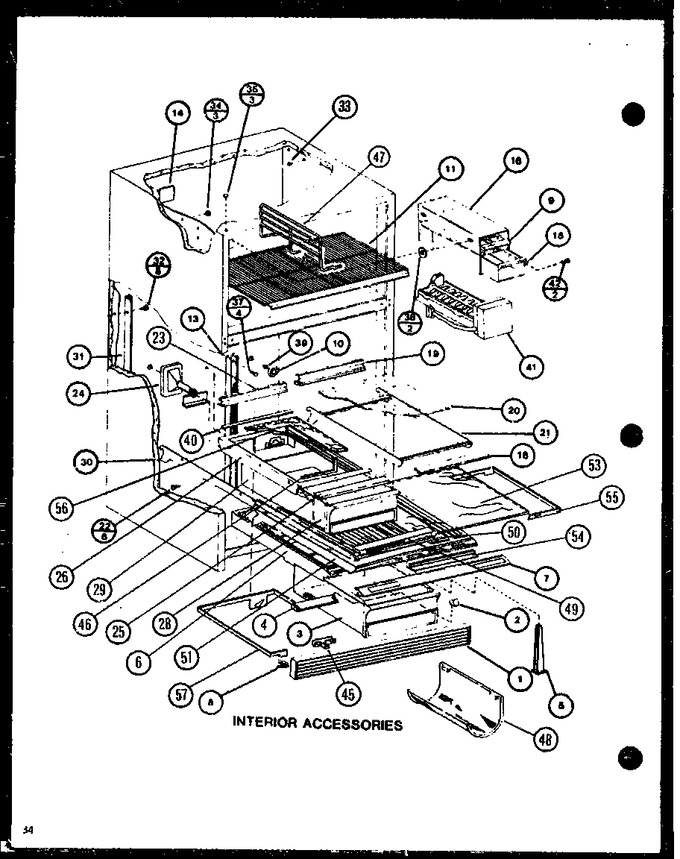

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520506		Grille-toe K		Appelez-nous	-
1	D7520508		Grille-toe L		Appelez-nous	-
1	D7520507		Grille, Toe, Gold		Appelez-nous	-
2	C8991201		Knob, Crisper Control		Appelez-nous	-
3	D7581024		Crisper Pan		Appelez-nous	-
4	D7860601		Slide, Crisper Control		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7856503		Frame		Appelez-nous	-
7	D7616636		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
10	M0310314		Plug		Appelez-nous	-
11	D7580704		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
14	D7874402		Cover-fl Tb/plug		Appelez-nous	-
15	D7620009		Ice Bin		Appelez-nous	-
16	D7620106		Rack, Ice Service		Appelez-nous	-
18	C8913501		Trim, Shelf A		Appelez-nous	-
19	C8913601		Trim, Shelf		Appelez-nous	-
20	D7421278		Glass Shelf		Appelez-nous	-
21	D7871003		Frame, Cant.		Appelez-nous	-
22	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
23	C8990401		Trim, Rear Shelf		Appelez-nous	-
24	D7859303		Grommet, Meatkeeper		Appelez-nous	-
25	C8913530		Trim, Front Shelf, Mk		Appelez-nous	-
26	D7853301		Frame, M.k		Appelez-nous	-
28	D7698314		Meat Pan		Appelez-nous	-
29	D7698105		Sleeve, Meat Keeper		Appelez-nous	-
30	D7862905		Blank Side Rail		Appelez-nous	-
30	D7862906		Blank Side Rail		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
32	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
33	M0311301		Plug Button		Appelez-nous	-
34	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
36	M0310720		Plug		Appelez-nous	-
36	M0310716		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
37	M0230923		Screw		Appelez-nous	-
38	M0270508		Washer		Appelez-nous	-
39	B8362502		Insul. Mk Plug		Appelez-nous	-
40	B8393601		10043101		Appelez-nous	-
41	Y00000000		See Note Add-on Ice Maker -- (available From Sales)		Appelez-nous	-
42	M0219559		Screw		Appelez-nous	-
45	D7859401		Slide-mk Control		Appelez-nous	-
46	A3030305		Gasket-per Ft		Appelez-nous	-
47	D7806001		Shelf Wire		Appelez-nous	-
48	D7547604		Bottle Rack		Appelez-nous	-
49	C8913534		Trim Def/can Shelf		Appelez-nous	-
50	D7710407		Shelf Df/cn Disp		Appelez-nous	-
51	10027803		Frame-of/cn Shelf		Appelez-nous	-
53	D7421258		Glass Crisper Top Gg		Appelez-nous	-
54	D7718402		Seal Crisper		Appelez-nous	-
55	D7859601		Band Crisper Control		Appelez-nous	-
56	D7421251		Glass Shelf M.k		Appelez-nous	-
57	D7859501		Band M.k. Control		Appelez-nous	-
NI	R0179133		Assy, Glass Crisper Top		Appelez-nous	-
NI	D7712710		Def Can Shelf Assy Q		Appelez-nous	-
NI	D7871105		Glass Shelf Assembly		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
NI	D7871106		Glass Shelf Assembly		Appelez-nous	-
