01 - Compressor Compartment Parts
02 - Fz Door Parts
03 - Interior Accessories
04 - Rear Components
05 - Ref Door Parts

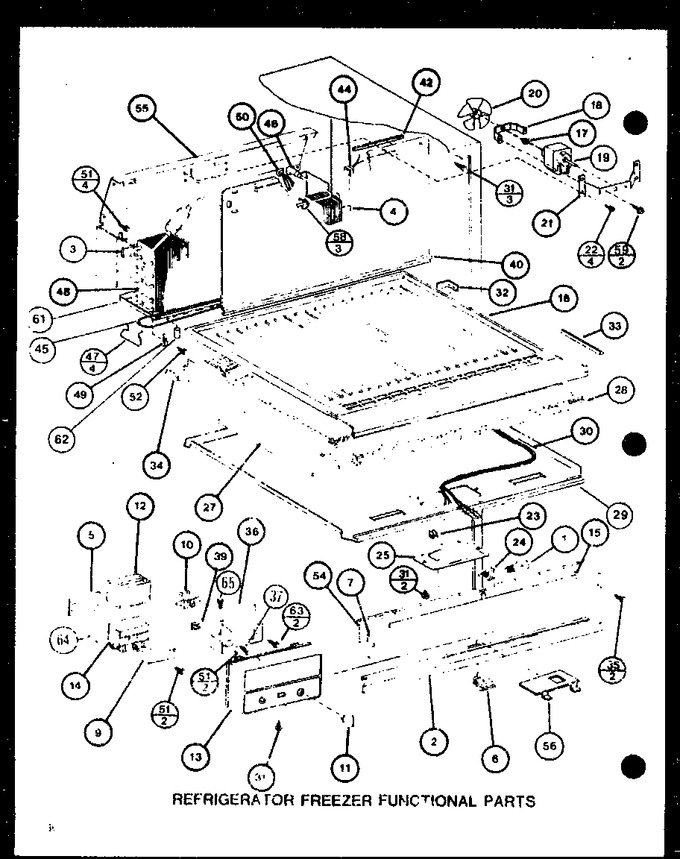

06 - Ref Fz Functional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 2 | D7653003 | Breaker, Ref Top V |
|
- | |||||
| 3 | B8322902 | Block Evap. Coil |
|
- | |||||
| 4 | B8361701 | Block Evap Coil |
|
- | |||||
| 5 | B8345401 | Gasket, Damper |
|
- | |||||
| 6 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 7 | C8842505 | Center Mullion, Almond |
|
- | |||||
| 7 | C8842504 | Center Mullion |
|
- | |||||
| 7 | C8842501 | W Center Mull. -pnt |
|
- | |||||
| 9 | C8902601 | Insert, Control |
|
- | |||||
| 10 | C8907302 | Cold Control Fzr |
|
- | |||||
| 11 | D7009802 | Knob |
|
- | |||||
| 12 | D7543201 | Insulation Damper |
|
- | |||||
| 13 | D7545009 | Control Cover |
|
- | |||||
| 14 | D7547402 | Damper Control, Warm 26.5°f, N |
|
- | |||||
| 15 | D7654504 | Heater, Mullion |
|
- | |||||
| 16 | D7714708 | Bottom, Freezer |
|
- | |||||
| 17 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 18 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 19 | WPC8891605 | Motor, Evap Fan (Replaces: C8891601) |
|
$ 344.82 | |||||
| 20 | C8927801 | Blade, Evap Fan |
|
- | |||||
| 21 | D7524501 | Brkt Evap Fan Shroud |
|
- | |||||
| 22 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 23 | B5733302 | Clip, Ground |
|
- | |||||
| 24 | D7714401 | Socket-light |
|
- | |||||
| 25 | C8730101 | Shield, Light |
|
- | |||||
| 27 | C8887904 | Insul. Dr Block |
|
- | |||||
| 28 | D7816904 | Drain Block Kit |
|
- | |||||
| 29 | D7539312 | Top Ref. |
|
- | |||||
| 30 | D7649602 | Harness Mullion |
|
- | |||||
| 31 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 32 | M0275117 | Tape Per Roll A |
|
- | |||||
| 33 | B5757703 | Gasket, Air Block |
|
- | |||||
| 34 | B5757808 | Gasket |
|
- | |||||
| 35 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 36 | D7713802 | Bracket, Control |
|
- | |||||
| 37 | M0234003 | Screw |
|
- | |||||
| 39 | M0350101 | Switch |
|
- | |||||
| 40 | D7874601 | Evap Cover |
|
- | |||||
| 42 | A3189320 | Gasket, Foam |
|
- | |||||
| 44 | WP10442411 | Thermostat, Defrost (Replaces: C8978402) |
|
Immediately | $ 44.02 | ||||
| 45 | D7549703 | Heater Evap. |
|
- | |||||
| 46 | D7759001 | Heat Exchanger |
|
- | |||||
| 47 | C8952001 | Clip |
|
- | |||||
| 48 | R0170032 | Evaporator Assembly |
|
- | |||||
| 49 | A3253803 | Clamp |
|
- | |||||
| 50 | D7864401 | Harness Liner |
|
- | |||||
| 51 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 52 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 54 | 876370 | Insulation, Batt (Replaces: B0523561) |
|
$ 243.14 | |||||
| 55 | D7691102 | Shroud Fan |
|
- | |||||
| 56 | C8932201 | Barrier Lt-sw K |
|
- | |||||
| 58 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 59 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 61 | D7501301 | Drip Tray Evaporator |
|
- | |||||
| 62 | B8335701 | Tube, Drip Tray |
|
- | |||||
| 63 | M0216531 | Screw |
|
- | |||||
| 64 | A3263906 | Gasket-per Ft |
|
- | |||||
| 65 | M0253916 | Screw |
|
- |
