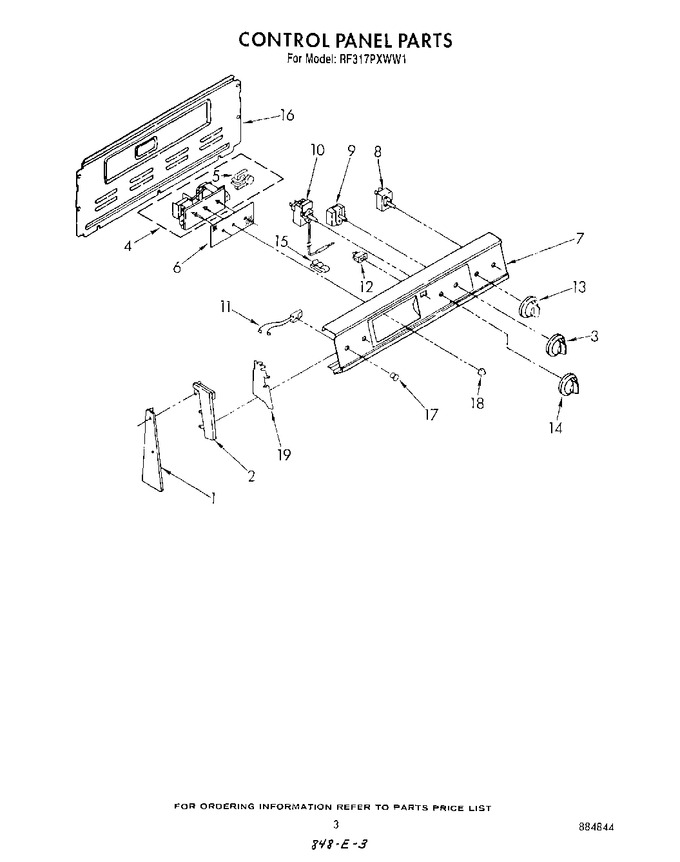

03 - Control Panel


04 - Door And Drawer , Literature And Optional


05 - Oven


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313189		End Trim R.h.		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.85
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
3	3149985		Knob, Control (selector)				$ 34.83
4	3149505		Timer, Clock Includes No. 5		Appelez-nous	-
5	309822		Motor, Timer		Appelez-nous	-
6	313513		Glass, Timer		Appelez-nous	-
7	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
7	3149839		Panel, Control		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
8	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
8	5500-287		Switch, Infinite (8`` Unit)   (Replaces: 3148953)			Immediately	$ 52.39
8	WP3148952		Switch, Infinite (6`` Unit)   (Replaces: 3148952)			Immediately	$ 69.51
9	313062		Switch, Selector		Appelez-nous	-
9	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
10	661150		Thermostat, Oven		Appelez-nous	-
10	311498		Thermostat, Oven (alt.)		Appelez-nous	-
10	310864		Thermostat, Oven (alt.)		Appelez-nous	-
11	313102		Light, Indicator (surface Unit (2))				$ 66.48
11	314031		Light, Indicator (oven On)				$ 62.88
12	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 89.48
13	WP3149983		Knob, Control (4) (surface Unit)   (Replaces: 3149983)				$ 23.23
14	310410		Screw (2)		Appelez-nous	-
14	3149987		Knob, Control (thermostat)				$ 25.12
15	313570		Tube Clip		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
16	313195		Rear Cover Control Panel		Appelez-nous	-
17	313101		Lens, Amber (3)		Appelez-nous	-
18	313311		Spring, Knob		Appelez-nous	-
18	330206		Knob, Timer (3)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
19	313608		Shield, Glass (2)		Appelez-nous	-
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
