SELECT A DIAGRAM

01 - Compressor Compartment

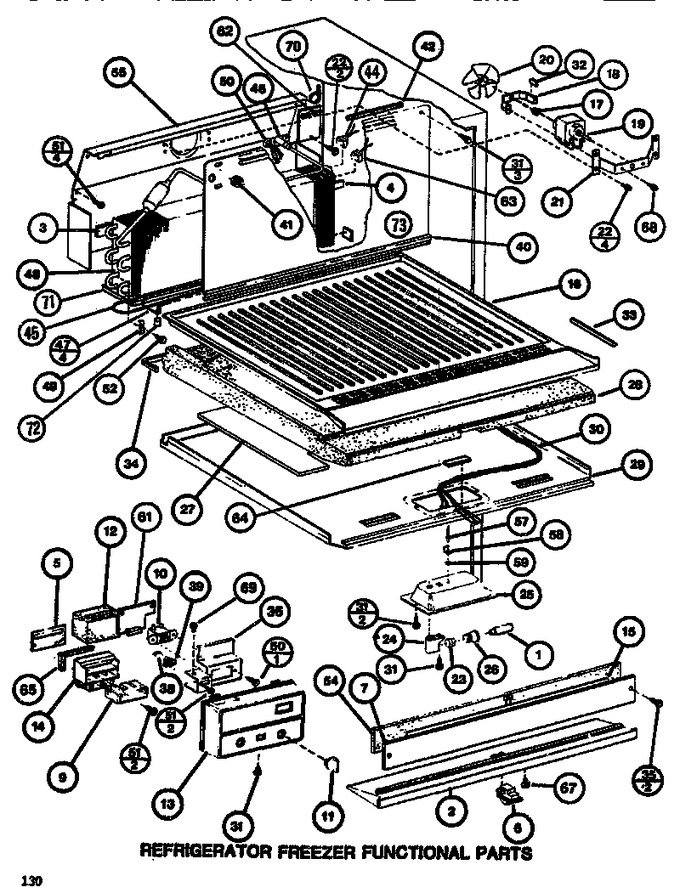

02 - Functional Parts (ref/frz)


03 - Fz Door


04 - Interior Accessories


05 - Rear Components


06 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11618980		Lamp 40 Watt   (Replaces: B8363301)				$ 22.42
2	D7653044		Breaker, Ref Top		Appelez-nous	-
3	B8322902		Block Evap. Coil		Appelez-nous	-
4	B8361702		Block Evap Coil		Appelez-nous	-
5	B8345401		Gasket, Damper		Appelez-nous	-
6	C8929703		Light Switch K		Appelez-nous	-
7	C8842506		Center Mullion		Appelez-nous	-
7	C8842509		Center Mullion		Appelez-nous	-
7	C8842510		Center Mullion		Appelez-nous	-
9	C8902601		Insert, Control		Appelez-nous	-
10	D7656101		Control, Frz. Temp		Appelez-nous	-
11	D7661901		Knob, Control		Appelez-nous	-
12	D7543201		Insulation Damper		Appelez-nous	-
13	D7545015		Cover, Control		Appelez-nous	-
14	D7656201		Assy, Damper-control		Appelez-nous	-
15	D7654502		Heater Mullion		Appelez-nous	-
16	D7714708		Bottom, Freezer		Appelez-nous	-
17	WP2264462		Gromet   (Replaces: A1017201)			Immediately	$ 46.17
18	C8881301		Brkt Evap Fan		Appelez-nous	-
19	WP10513804		Motor, Evap.   (Replaces: C8891602)				$ 256.76
20	C8927801		Blade, Evap Fan		Appelez-nous	-
21	D7524501		Brkt Evap Fan Shroud		Appelez-nous	-
22	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
23	B8369601		Contract, Light Socket		Appelez-nous	-
24	B8369501		Base Lt Socket K		Appelez-nous	-
25	D7657501		Housing Light		Appelez-nous	-
26	B8369701		Housing Bulb A/k		Appelez-nous	-
27	C8887904		Insul. Dr Block		Appelez-nous	-
28	D7521804		Drain Block Kit		Appelez-nous	-
29	D7539312		Top Ref.		Appelez-nous	-
30	D7699502		Wiring Harness		Appelez-nous	-
31	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
32	A1047901		Shim		Appelez-nous	-
33	B5757703		Gasket, Air Block		Appelez-nous	-
34	B5757808		Gasket		Appelez-nous	-
35	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
36	D7713802		Bracket, Control		Appelez-nous	-
37	M0580007		Grommet, Screw		Appelez-nous	-
38	M0305301		Diode		Appelez-nous	-
39	M0381901		Switch, Heater		Appelez-nous	-
40	D7630101		Cover, Evap		Appelez-nous	-
42	A3189320		Gasket, Foam		Appelez-nous	-
44	C8898604		Thermostat, Defrost		Appelez-nous	-
45	D7549704		Heater Evap		Appelez-nous	-
46	D7554902		Heat Exchanger		Appelez-nous	-
47	C8952001		Clip		Appelez-nous	-
48	R0170026		Evaporator Assembly		Appelez-nous	-
49	A3253803		Clamp		Appelez-nous	-
50	D7699401		Harness, Liner		Appelez-nous	-
51	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
52	M0212932		Screw		Appelez-nous	-
54	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
55	D7691106		Shroud Fan		Appelez-nous	-
57	WP210720		Pop Rivets   (Replaces: A4539605)				$ 14.16
58	M0320907		Terminal Ground A		Appelez-nous	-
59	M0272803		Lock Washer		Appelez-nous	-
60	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
61	C8948102		Shield, Temp. Cont.		Appelez-nous	-
62	C8947901		Board-term		Appelez-nous	-
63	C8898605		Kit, Defrost Thermostat		Appelez-nous	-
64	A0092404		Pad-protective		Appelez-nous	-
65	A3263906		Gasket-per Ft		Appelez-nous	-
67	M0210217		Screw, No.8-18 X 3/8 P Trs Hd Lp		Appelez-nous	-
68	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
69	M0251017		Screw		Appelez-nous	-
70	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
71	D7501301		Drip Tray Evaporator		Appelez-nous	-
72	B8335701		Tube, Drip Tray		Appelez-nous	-
73	B8358502		Gasket		Appelez-nous	-
NI	M0580007		Grommet, Screw		Appelez-nous	-
