01 - Compressor Compartment


02 - Functional Parts (ref/frz)


03 - Fz Door

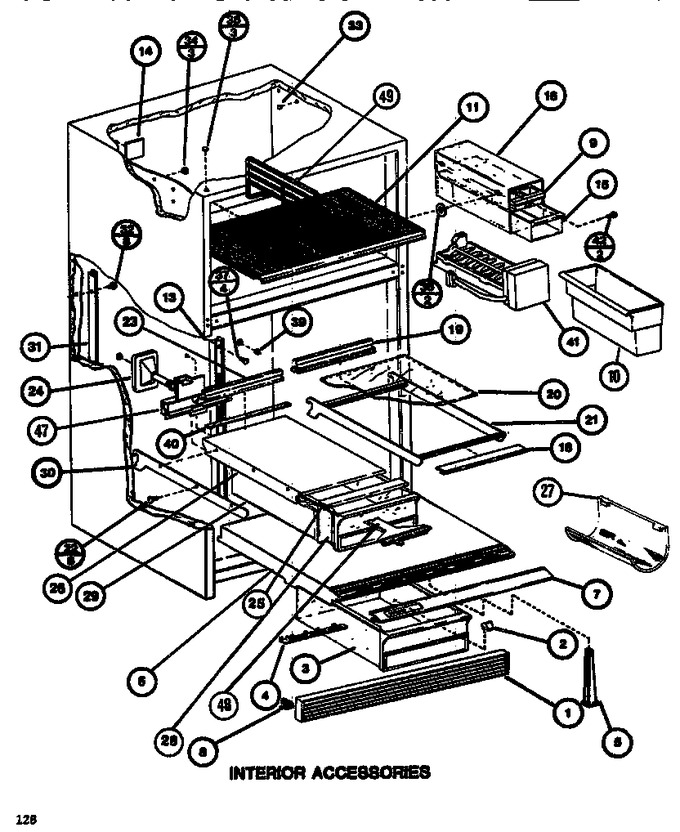

04 - Interior Accessories


05 - Rear Components


06 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520503		Grille-toe-b K		Appelez-nous	-
2	C8908301		Knob Humidity A-k		Appelez-nous	-
3	D7581027		Net Pan, Crisper		Appelez-nous	-
4	D7587705		Slide Humidity		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7616506		Crisper Top,assy		Appelez-nous	-
7	D7616622		Trim		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
10	D7620012		Ice Bin		Appelez-nous	-
11	D7580704		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
14	D7604903		Cover-fl Tb/plug		Appelez-nous	-
16	D7620108		Rack, Ice Service		Appelez-nous	-
18	C8913507		Trim, Front Shelf		Appelez-nous	-
19	C8913603		Trim, Shelf Rear		Appelez-nous	-
20	D7421232		Glass Shelf		Appelez-nous	-
21	D7602304		Frame Cont. Shelf A		Appelez-nous	-
22	M0213129		Screw		Appelez-nous	-
23	C8831810		Trim, Rear Shelf		Appelez-nous	-
24	D7701203		Grommet		Appelez-nous	-
25	C8913516		Trim		Appelez-nous	-
26	D7698209		Top Meatkeeper		Appelez-nous	-
27	D7547603		Rack, Bottle		Appelez-nous	-
28	D7698317		Meat Pan		Appelez-nous	-
29	D7698102		Sleeve M.k.		Appelez-nous	-
30	D7600031		Side Plate Mk		Appelez-nous	-
31	D7599104		Ladder, Sides		Appelez-nous	-
32	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
33	M0311301		Plug Button		Appelez-nous	-
34	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
36	M0310716		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
36	M0310720		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
38	M0270508		Washer		Appelez-nous	-
39	B8362502		Insul. Mk Plug		Appelez-nous	-
41	Y00000000		See Note Model Ic-3, Mfg. No. P7621304w, Add-on Ice Maker -- (available From Sales)		Appelez-nous	-
42	M0219559		Screw		Appelez-nous	-
47	D7698003		Housing M.k. Slide		Appelez-nous	-
48	D7697903		M.k. Control Slide		Appelez-nous	-
49	D7806001		Shelf Wire		Appelez-nous	-
NI	D7714633		Glass Shelf Assy Q		Appelez-nous	-
NI	D7714624		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
