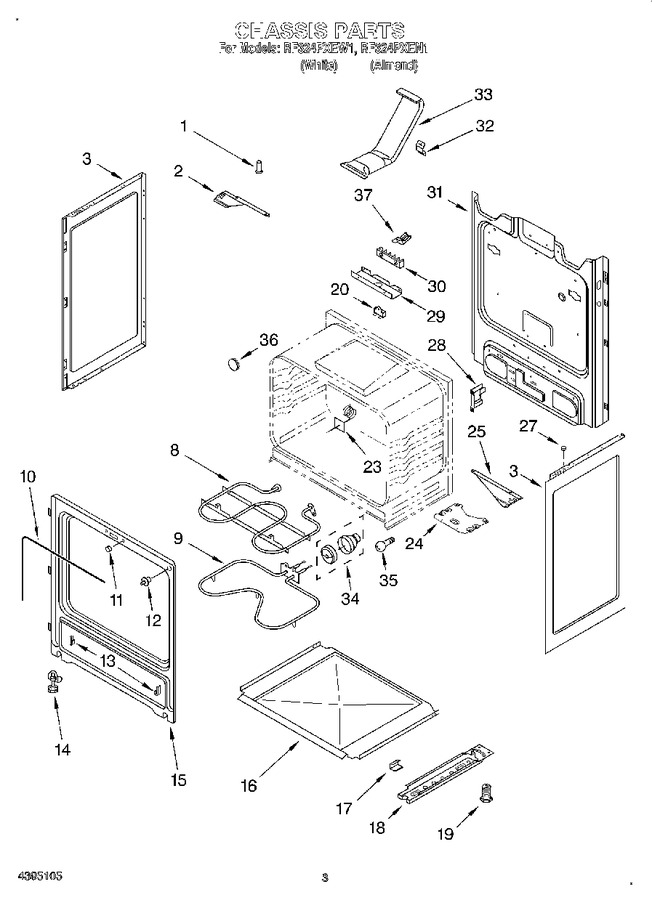

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169145		Tube, Oven Vent		Appelez-nous	-
2	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
2	3196156		Support, Corner Lr		Appelez-nous	-
3	3186073		Panel, Side (2) (white)		Appelez-nous	-
3	3186074		Panel, Side (2) (almond)		Appelez-nous	-
8	W10856603		Element, Broil   (Replaces: 3195063)			Immediately	$ 154.62
8	WP3196174		Screw (4)   (Replaces: 3196174)			Immediately	$ 8.44
9	WP3196174		Screw (2)   (Replaces: 3196174)			Immediately	$ 8.44
9	WPW10308477		Element, Bake   (Replaces: 3195067)			Immediately	$ 71.86
10	W11542153		Seal, Oven Door   (Replaces: 3186152)			Immediately	$ 50.20
11	3196072		Plug, Frame		Appelez-nous	-
12	WP3196262		Switch, Door   (Replaces: 3196262)				$ 165.47
13	WP3196175		Screw (2)   (Replaces: 3196165)			Immediately	$ 7.55
13	WP3195546		Glide, Drawer (2)   (Replaces: 3195546)			Immediately	$ 8.33
14	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 87.12
14	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
14	WP98008545		Screw (4)   (Replaces: 3196179)				$ 18.60
15	WP7101P246-60		Screw (6)   (Replaces: 3196177)				$ 8.24
15	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 14.72
15	3186156		Frame, Front		Appelez-nous	-
16	WP8054068		Tray, Insulation   (Replaces: 3186145)				$ 104.36
17	3196576		Clip, Panel (6)		Appelez-nous	-
18	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 14.72
18	W11818353		Rail, Base (2)   (Replaces: 3186055)				$ 62.66
19	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 8.24
20	3196172		Screw			Immediately	$ 13.47
20	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 50.10
23	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
23	3148440		Sensor, Oven		Appelez-nous	-
24	3196806		Support, Front (2)		Appelez-nous	-
24	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
25	3196172		Screw			Immediately	$ 13.47
25	3195987		Support, Corner Rr		Appelez-nous	-
25	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
27	238614		Bumper, Side (2)   (Replaces: 3195809)				$ 84.79
28	W10404688		Support, Oven (2)   (Replaces: 3186116)				$ 17.69
28	WP3196175		Screw (4)   (Replaces: 3196165)			Immediately	$ 7.55
29	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
30	WP3400016		Screw (2)   (Replaces: 3400016)				$ 8.39
31	8053508		Back, Main		Appelez-nous	-
31	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
32	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
32	3196437		Bracket, Flue		Appelez-nous	-
33	WPW10134285		Flue   (Replaces: 3195931)			Immediately	$ 263.00
33	WP489491		Screw (2)   (Replaces: 3196566)				$ 7.30
34	W11594027		Light Socket Assy   (Replaces: 3176512)			Immediately	$ 87.01
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
36	3196439		Button, Plug		Appelez-nous	-
37	WPW10208653		Insulation, Wrap   (Replaces: 3195037)			Immediately	$ 55.47
37	3196436		Insulation, Vent		Appelez-nous	-
37	WP112432		Nut   (Replaces: 112432)				$ 8.63
37	W11311894		Insulation, Back   (Replaces: 3186147)				$ 115.11
37	3169573		Strap, Ground		Appelez-nous	-
37	313660		Clip		Appelez-nous	-
37	W11244557		Screw   (Replaces: 3196173)				$ 14.29
