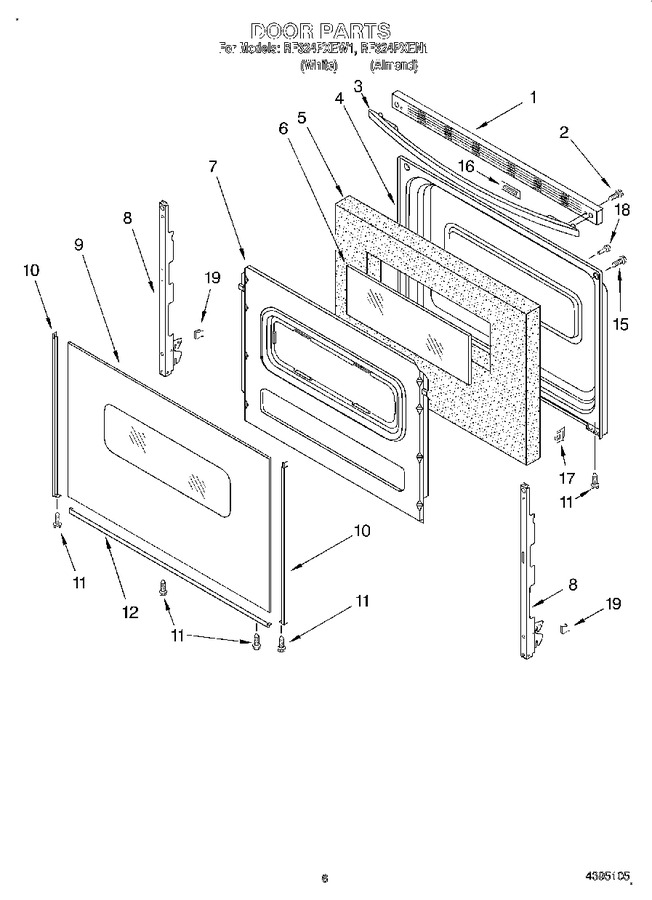

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196819		Trim, Top		Appelez-nous	-
2	WP179051		Screw, Handle (2)   (Replaces: 3196161)			Immediately	$ 8.42
3	WPW10202217		Handle, Door   (Replaces: 3195922)				$ 270.65
4	3186296		Liner, Door		Appelez-nous	-
5	3186256		Insulation, Door		Appelez-nous	-
6	WP9758164		Window, Inner   (Replaces: 3186284)				$ 159.93
7	9761500		Retainer, Insul.   (Replaces: 3186303)				$ 325.62
8	3196073		Hinge, Door (2)		Appelez-nous	-
8	WP3196175		Screw (4)   (Replaces: 3196165)			Immediately	$ 7.55
9	WP9762477		Glass, Outer   (Replaces: 3195608)				$ 330.12
10	8184858		Trim, Side (left Hand)   (Replaces: 3195976)				$ 168.85
10	8184858		Trim, Side (right Hand)   (Replaces: 3195973)				$ 168.85
11	W10491985		Screw (9)   (Replaces: 3196160)			Immediately	$ 7.55
12	8184858		Trim, Lower   (Replaces: 3195424)				$ 168.85
15	WP3196164		Screw (2)   (Replaces: 3196164)			Immediately	$ 11.03
16	3196071		Plug, Door		Appelez-nous	-
17	3196025		Clip, Glass (6)				$ 20.10
18	238614		Bumper, Door (2)   (Replaces: 3195809)				$ 84.79
19	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
19	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
19	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
19	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
19	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
19	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
19	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	261888		New Avocado		Appelez-nous	-
19	261886		Coffee		Appelez-nous	-
19	261890		Harvest Gold		Appelez-nous	-
19	285365		Toast		Appelez-nous	-
19	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
19	285006		Paint, Spray 13 Oz. (black)				$ 59.89
19	350942		Primer (white)   (Replaces: 206922)				$ 94.14
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	978883		Almond (uncut)		Appelez-nous	-
19	261891		Harvest Gold (uncut)		Appelez-nous	-
19	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
19	285368		Platinum (uncut)		Appelez-nous	-
19	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
19	3191048		Cleaner, Glass		Appelez-nous	-
19	8273888A		Anti-tip Kit   (Replaces: 3176830)				$ 32.62
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
19	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
19	3196925		Clip, Door Stop				$ 9.06
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
19	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
19	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
19	261582		Grease		Appelez-nous	-
19	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
	3196108		Harness, Wire (door Switch)		Appelez-nous	-
	LIT3195945		Installation Instr (templet)		Appelez-nous	-
	LIT3196274		Guide, Use & Care		Appelez-nous	-
	3400964		Clip, Wire Harness   (Replaces: 3196520)				$ 89.00
	3195194		Harness, Oven		Appelez-nous	-
	8053721		Harness, Cooktop		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT3196100		Tech Sheet		Appelez-nous	-
	814381		Pin Kit-dr Removal				$ 11.28
	WP3196154		Screw, Ground   (Replaces: 3196154)				$ 8.44
	LIT3195944		Instructions, Installation		Appelez-nous	-
