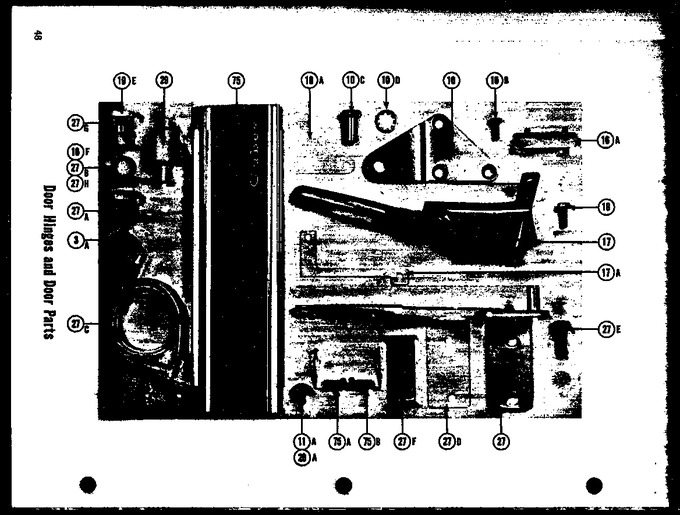

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	B0539806		Bearing Flat (top Hinge)		Appelez-nous	-
10	M0244531		Screw		Appelez-nous	-
10	M0274027		Washer		Appelez-nous	-
10	M0272510		Washer		Appelez-nous	-
10	A3076401		Hinge Shim		Appelez-nous	-
10	C3585901		Hinge, Top		Appelez-nous	-
10	A3063601		Hinge Pin		Appelez-nous	-
17	A3061801		Shim		Appelez-nous	-
17	A3061803		Shim		Appelez-nous	-
17	C3572502		Hinge		Appelez-nous	-
17	A3061802		Shim		Appelez-nous	-
27	A3061902		Shim		Appelez-nous	-
27	B0539806		Bearing Flat (top Hinge)		Appelez-nous	-
27	M0274027		Washer		Appelez-nous	-
27	A3061901		Shim		Appelez-nous	-
27	M0246159		Screw		Appelez-nous	-
27	B0539801		Flat Bearing Assy., Bottom Of		Appelez-nous	-
27	A3061903		Shim		Appelez-nous	-
27	A3083501		Hinge Cover		Appelez-nous	-
27	C3589001		Hinge		Appelez-nous	-
27	B5625401		Btm Hinge Wire Kit		Appelez-nous	-
28	M0241118		Screw-sm		Appelez-nous	-
NI	B5625501		Lead Wire		Appelez-nous	-
NI	A3091901		Block Air Vent		Appelez-nous	-
NI	A3101901		Vent Assy		Appelez-nous	-
NI	A3079202		Strike, Light Switch		Appelez-nous	-
NI	A3092101		Shim		Appelez-nous	-
NI	A3054301		Spacer		Appelez-nous	-
NI	M0241203		Screw		Appelez-nous	-
