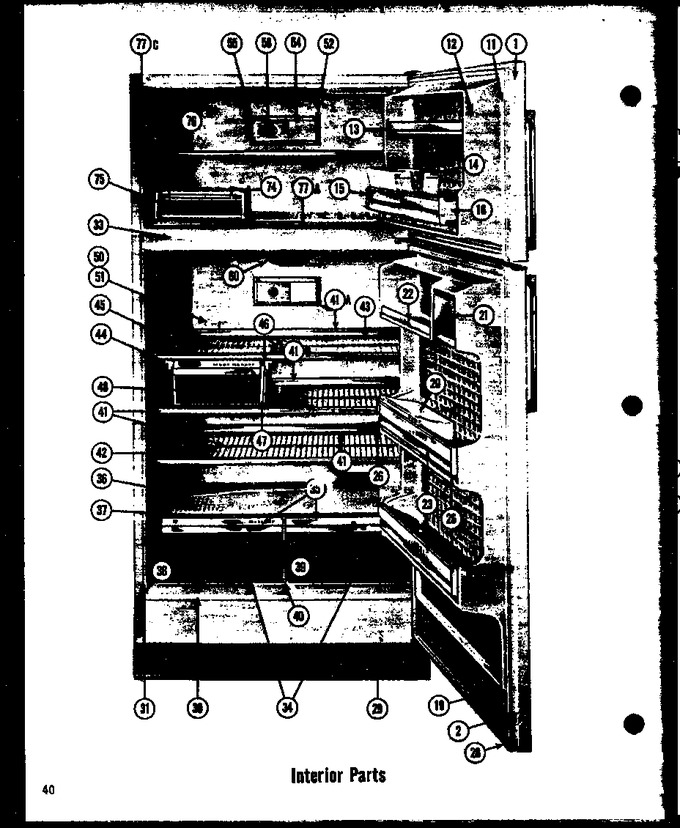

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	D3977101		Inner Door Panel, Fz		Appelez-nous	-
15	D3976712		Retainer		Appelez-nous	-
16	D3976804		Support, Package Retainer, L.h		Appelez-nous	-
16	B0577901		Support Bar, Package Retainer		Appelez-nous	-
16	D3976803		Support, Package Retainer, R.h		Appelez-nous	-
20	D3984401		Container, Egg		Appelez-nous	-
21	A3084701		Pivot		Appelez-nous	-
21	C3589301		Door, Butter Keeper		Appelez-nous	-
22	D3935208		Retainer		Appelez-nous	-
23	D3976708		Retainer, Package, Ref Door		Appelez-nous	-
26	D3976801		Support, Package Retainer, R.h		Appelez-nous	-
26	D3976802		Support, Package Retainer, L.h		Appelez-nous	-
28	D3974201		Gasket, Ref Door		Appelez-nous	-
29	B5622601		Switch		Appelez-nous	-
30	D3980601		Br Frame		Appelez-nous	-
31	D3951708		Breaker Frame, Ref Side, L.h.		Appelez-nous	-
33	C3603603		Mullion Cap, Coppertone, R.h.		Appelez-nous	-
33	C3603605		Mullion Cap, Avocado, R.h.		Appelez-nous	-
33	C3603601		Center Mullion		Appelez-nous	-
34	D3966904		Pan, Crisper		Appelez-nous	-
35	C3586006		Trim Crisper Handle		Appelez-nous	-
36	D3984501		Crisper Top		Appelez-nous	-
38	B0597601		Support		Appelez-nous	-
39	B0571002		Support		Appelez-nous	-
40	B0571201		Support		Appelez-nous	-
43	D3985701		Shelf		Appelez-nous	-
43	C3606001		Ladder-ctr		Appelez-nous	-
43	C3606101		Ladder		Appelez-nous	-
43	D7001201		Shelf, Cantilever, Meat Keeper		Appelez-nous	-
54	D3953302		Air Deflector, Air Damper Cont		Appelez-nous	-
55	B0592801		Thinplate		Appelez-nous	-
58	C3588402		Knob		Appelez-nous	-
60	A3116201		Switch		Appelez-nous	-
60	D3982201		Top Assembly, Ref		Appelez-nous	-
76	D3983001		Shelf		Appelez-nous	-
NI	M0310203		Plug		Appelez-nous	-
NI	B0573504		Insulation		Appelez-nous	-
NI	M0310002		Plug		Appelez-nous	-
NI	M0215004		Screw		Appelez-nous	-
NI	M0225016		Screw-tc, Indented Hex Head		Appelez-nous	-
NI	A3030313		Gasket (per Foot)		Appelez-nous	-
NI	D3948402		Heater		Appelez-nous	-
NI	A3056701		Plug		Appelez-nous	-
NI	M0211530		Screw		Appelez-nous	-
NI	A3031007		Insulation Block, Breaker Fram		Appelez-nous	-
NI	B0530005		Support K		Appelez-nous	-
NI	M0230814		Screw		Appelez-nous	-
NI	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
NI	A0353901		Plug		Appelez-nous	-
NI	C3612001		Escutcheon		Appelez-nous	-
NI	B0596004		Angle-crisper Top		Appelez-nous	-
NI	M0310008		Plug Button		Appelez-nous	-
NI	A3081006		Insulation Block, Breaker Fram		Appelez-nous	-
NI	A3081005		Insulation Block, Breaker Fram		Appelez-nous	-
NI	B0590701		End Cap		Appelez-nous	-
NI	B0590702		End Cap, L.h.		Appelez-nous	-
NI	D3951707		Breaker Frame, Ref Side, R.h.		Appelez-nous	-
NI	B5609701		Support Block		Appelez-nous	-
NI	B5612001		From Door Slab		Appelez-nous	-
NI	A3069801		Support Bar Plate		Appelez-nous	-
NI	M0310303		Kit, Plug Button		Appelez-nous	-
