Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	A3076401		Hinge Shim		Appelez-nous	-
10	B0539806		Bearing Flat (top Hinge)		Appelez-nous	-
10	A3063801		Pin, Top Hinge		Appelez-nous	-
10	C3585902		Hinge Top		Appelez-nous	-
10	M0274027		Washer		Appelez-nous	-
10	M0272510		Washer		Appelez-nous	-
10	M0244531		Screw		Appelez-nous	-
27	M0246159		Screw		Appelez-nous	-
27	A3061901		Shim		Appelez-nous	-
27	A3061902		Shim		Appelez-nous	-
27	B0539801		Flat Bearing Assy., Bottom Of		Appelez-nous	-
27	A3061903		Shim		Appelez-nous	-
27	C3589002		Hinge		Appelez-nous	-
27	A3083501		Hinge Cover		Appelez-nous	-
27	B0593205		Wire Assembly, Bottom Hinge		Appelez-nous	-
27	B0539806		Bearing Flat (top Hinge)		Appelez-nous	-
27	M0274027		Washer		Appelez-nous	-
28	M0241118		Screw-sm		Appelez-nous	-
29	B5622601		Switch		Appelez-nous	-
NI	A3092101		Shim		Appelez-nous	-
NI	B5612202		Lead Wire, Bottom Hinge		Appelez-nous	-
NI	A3079202		Strike, Light Switch		Appelez-nous	-
NI	A3054301		Spacer		Appelez-nous	-
NI	M0241203		Screw		Appelez-nous	-

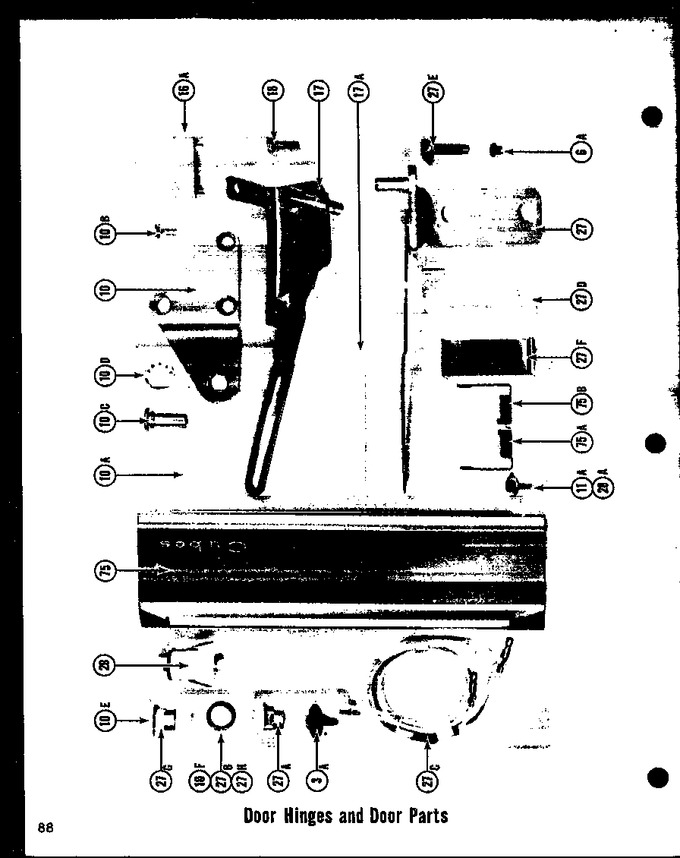

    View Diagram in Separate Window       Print Part List
