Diagram # Part Number Description Series Availability Ships Price Add to Cart
82 A3034801 Saddle Valve Appelez-nous -
83 M0751001 Reducing Elbow Appelez-nous -
84 A3084501 Coupling, Solenoid Valve And H Appelez-nous -
85 4318047 Water Valve Kit   (Replaces: D3983903) In-Stock Immediately $ 74.09

NI A3101501 Outlet Line, Valve Appelez-nous -
NI M0233032 Screw Appelez-nous -
NI B5611901 Bracket Appelez-nous -
NI A3104301 Wiring Harness, Solenoid Valve Appelez-nous -
NI M0102804 Clamp Appelez-nous -
NI WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

NI WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40


    View Diagram in Separate Window     Print Icon   Print Part List

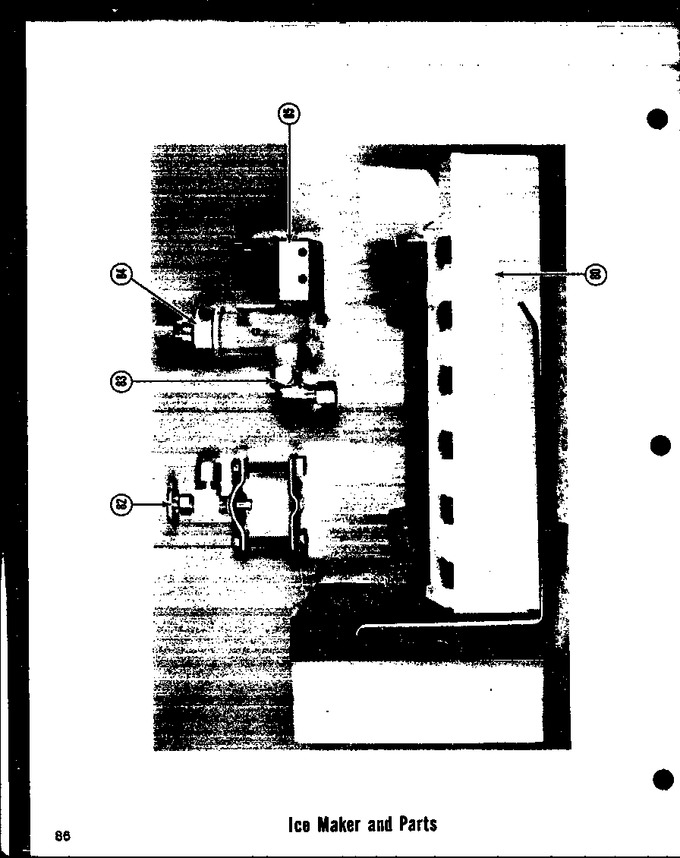

Diagram for TCI-19LD
