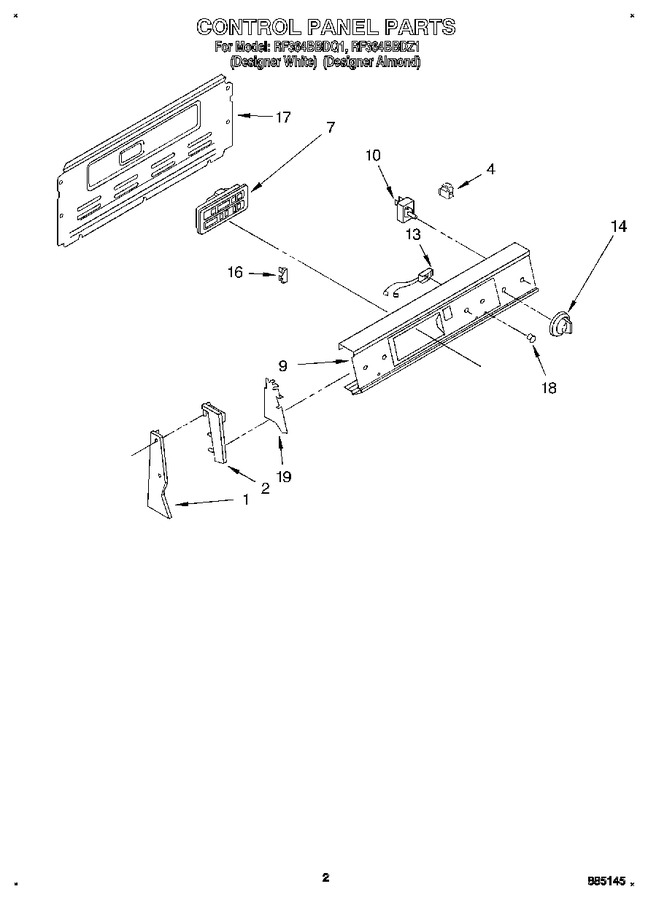

02 - Control Panel


03 - Door And Drawer


04 - Oven


05 - Unit


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188995		(end Trim L.h.) (designer Almond)		Appelez-nous	-
1	WP681414		(end Trim L.h.) (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.85
1	3183094		End Trim R.h. (designer White)		Appelez-nous	-
1	3188994		End Trim R.h. (designer Almond)		Appelez-nous	-
1	3183095		(end Trim L.h.) (designer White)		Appelez-nous	-
2	3187794		End Cap L.h. (designer White)		Appelez-nous	-
2	3187795		End Cap R.h. (designer Almond)		Appelez-nous	-
2	3187793		End Cap R.h. (designer White)		Appelez-nous	-
2	WP965173		(end Cap L.h.) (screw,)   (Replaces: 3150344)			Immediately	$ 10.72
2	3187796		End Cap L.h. (designer Almond)		Appelez-nous	-
4	3147832		Terminal, Adapter		Appelez-nous	-
7	3195183		Timer, Erc Control (designer White)		Appelez-nous	-
7	WP965173		Timer, Erc Control (screw (2))   (Replaces: 246132)			Immediately	$ 10.72
7	3195184		Timer, Erc Control (designer Almond)		Appelez-nous	-
9	3188996		Panel, Control (screw, White)		Appelez-nous	-
9	3188689		Panel, Control (designer Almond)		Appelez-nous	-
9	3188688		Panel, Control (designer White)		Appelez-nous	-
9	3169471		Panel, Control (screw, Almond)		Appelez-nous	-
10	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 69.51
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
13	3169439		Indicator Light (hot Surface (1))		Appelez-nous	-
13	3169457		Indicator Light (surf. Elmnt. (2))		Appelez-nous	-
14	3188723		Knob, Control (4) (infinite Switch) (designer Almond)		Appelez-nous	-
14	3188722		Knob, Control (4) (infinite Switch) (designer White)		Appelez-nous	-
16	3187848		Fuse, Thermal		Appelez-nous	-
17	3187332		Rear Cover Control Panel		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
18	313101		Lens, Amber (3)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
19	313608		Shield, Glass (2)		Appelez-nous	-
