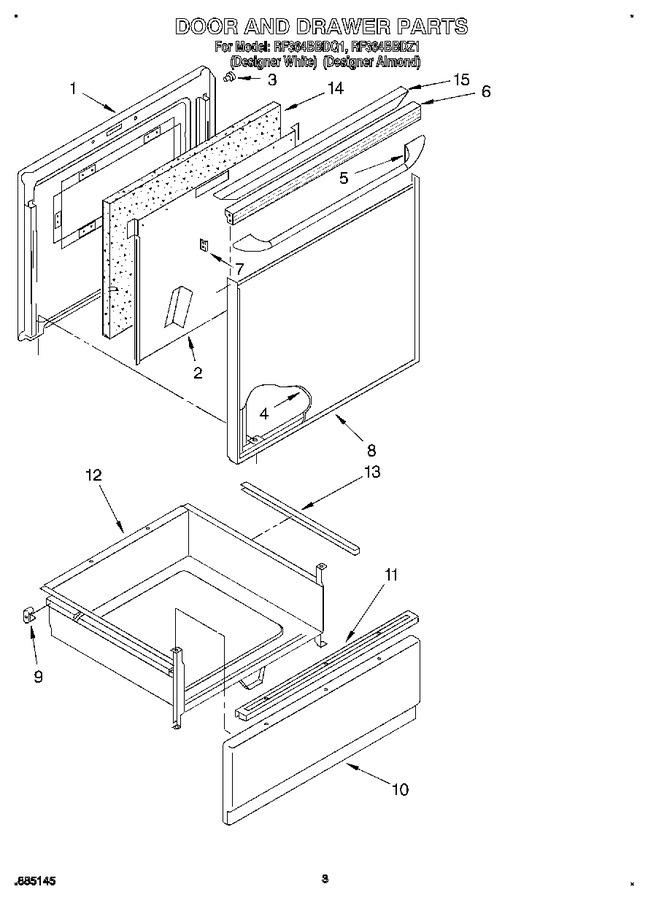

1	3172219		Liner, Oven Door		Appelez-nous	-
1	307748		Screw (2)		Appelez-nous	-
2	3148160		Retainer, Insulation		Appelez-nous	-
2	3185647		Screw (4) 8-18 X 3/8		Appelez-nous	-
3	3148182		Bumper, Door (4)		Appelez-nous	-
4	3149051		Panel, Glass (designer White)		Appelez-nous	-
4	3149052		Panel, Glass (designer Almond)		Appelez-nous	-
5	3188697		Handle, Door (designer Almond)		Appelez-nous	-
5	3188696		Handle, Door (designer White)		Appelez-nous	-
6	3188694		Door Top (designer Almond)		Appelez-nous	-
6	3188693		Door Top (designer White)		Appelez-nous	-
6	307748		Door Top (screw (2))		Appelez-nous	-
7	WP355515		Screw (4)   (Replaces: 355515)				$ 7.67
7	3148282		Clip, Handle (2)				$ 8.69
8	3188403		Frame, Door (screw (4))		Appelez-nous	-
8	3188404		Frame, Door (screw (4))		Appelez-nous	-
8	3188999		Frame, Door (designer Almond)		Appelez-nous	-
8	3185918		Frame, Door (screw (3))		Appelez-nous	-
8	3188998		Frame, Door (designer White)		Appelez-nous	-
9	307980		Glide, Rear (2)		Appelez-nous	-
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 7.57
10	3169422		Panel, Drawer (designer White)		Appelez-nous	-
10	WP488627		Panel Drawer (screw, 8-18 X 1/2)   (Replaces: 313349)				$ 7.57
10	3169423		Panel, Drawer (designer Almond)		Appelez-nous	-
11	3169472		Handle, Drawer (designer Almond)		Appelez-nous	-
11	3169473		Handle, Drawer (designer White)		Appelez-nous	-
12	327887		Drawer, Utility		Appelez-nous	-
13	309329		Protector (2)		Appelez-nous	-
14	3147951		Insulation		Appelez-nous	-
15	3188400		Cap, Top (screw (2))		Appelez-nous	-
15	3189001		Cap, Top (designer White)		Appelez-nous	-
15	3188399		Cap, Top (screw (2))		Appelez-nous	-
15	3189002		Cap, Top (designer Almond)		Appelez-nous	-
