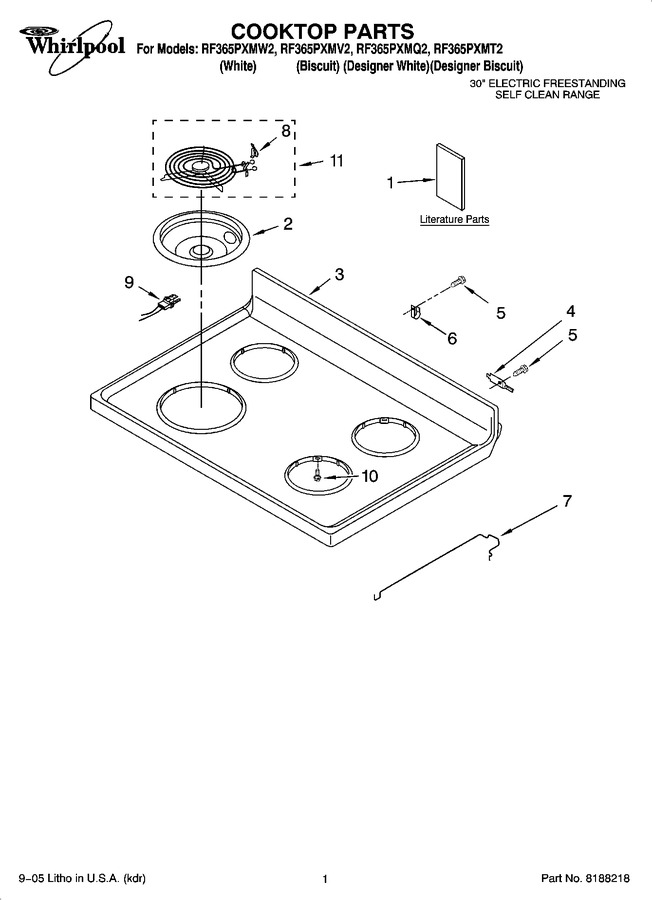

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	4454079		Tech Sheet		Appelez-nous	-
1	9758377		Instructions, Installation Instruct, Install (template)		Appelez-nous	-
1	9762365		Guide Use & Care		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	W10196405RW		Bowl, Drip (8`` Chrome (2))   (Replaces: 3195209)			Immediately	$ 21.82
2	WPW10196406		Bowl, Drip (6`` Chrome (2))   (Replaces: 3195208)			Immediately	$ 13.39
3	8272527		Cooktop (biscuit)		Appelez-nous	-
3	8195532		Cooktop (white)   (Replaces: 3186231)				$ 419.31
4	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.76
7	WP3195812		Rod, Support (2)   (Replaces: 3195812)			Immediately	$ 8.73
8	WP3195917		Clip, Spring   (Replaces: 3195917)			Immediately	$ 8.12
9	814399		Receptacle, Elmnt.			Immediately	$ 43.19
10	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
11	WPW10259865		Element, Surface (8`` (2))   (Replaces: 9761345)			Immediately	$ 117.69
11	WP660532		Element, Surface (6`` (2))   (Replaces: 9761347)			Immediately	$ 41.00
