Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8522433 Trim, Top (white) Appelez-nous -
1 8522434 Trim, Top (biscuit) Appelez-nous -
1 3196819 Trim, Top (black) Appelez-nous -
2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 11.03

3 8522445 Handle, Door (biscuit) Appelez-nous -
3 WPW10202217 Handle, Door (black)   (Replaces: 3195922) Special Order $ 270.65

3 WPW10202216 Handle, Door (white)   (Replaces: 8522444) Special Order $ 370.67

4 3186296 Liner, Door Appelez-nous -
5 8522415 Seal, Window Special Order $ 75.50

6 WP9758164 Glass, Inner (2)   (Replaces: 9758164) Special Order $ 159.93

7 3186290 Frame, Glass Appelez-nous -
8 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 101.37

9 9761499 Retainer, Insul.   (Replaces: 3186299) Special Order $ 325.33

10 WP8053807 Hinge, Door (2)   (Replaces: 8053807) Special Order $ 101.17

11 8273525 Glass, Outer (biscuit) Appelez-nous -
11 WP9762477 Glass, Outer (black)   (Replaces: 8053479) Special Order $ 330.12

11 WP9762476 Glass, Outer (white)   (Replaces: 8053481) Special Order $ 332.66

12 W10761018 Trim, Side (black Left Hand)   (Replaces: 8523171) In-Stock Immediately $ 53.77

12 WP8523167 Trim, Side (biscuit Right Hand)   (Replaces: 8523167) Special Order $ 119.10

12 WP8523173 Trim, Side (biscuit Left Hand)   (Replaces: 8523173) Special Order $ 123.53

12 WP8523166 Trim, Side (white Right Hand)   (Replaces: 8523166) In-Stock Immediately $ 84.23

12 WP8523172 Trim, Side (white Left Hand)   (Replaces: 8523172) In-Stock Immediately $ 69.93

12 W10761014 Trim, Side (black Right Hand)   (Replaces: 8523165) In-Stock Immediately $ 72.96

13 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

14 W11594186 Trim, Lower (white)   (Replaces: 8523175) In-Stock Immediately $ 61.37

14 WP8523177 Trim, Lower (black)   (Replaces: 8523177) In-Stock Immediately $ 165.86

14 WP8523178 Trim, Lower (biscuit)   (Replaces: 8523178) Special Order $ 161.77

15 3196025 Clip, Glass (4) Special Order $ 20.10

18 WP179051 Screw   (Replaces: 3196161) In-Stock Immediately $ 8.42

19 3196925 Clip, Door Stop Special Order $ 9.06

20 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 7.55

21 238614 Bumper, Door (2)   (Replaces: 3195809) Special Order $ 84.79

814381 Pin Kit-dr Removal Special Order $ 11.28

350956 Paint, Pressurized Spray (12 Oz.) (almond) Special Order $ 54.01

242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
799832 Kit. Porcelain Repair (white) Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 87.22

261582 Grease Appelez-nous -
WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 55.47

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 55.47

4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 27.77

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 59.89

4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 94.14

799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

978883 Paint, Bulk (1 Qt.) (almond (uncut)) Appelez-nous -
4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

3184478 Cleaner, Glass Appelez-nous -
WP3195996 Grill, Broiler   (Replaces: 3195996) Special Order $ 98.65

WP3196076 Pan, Broiler   (Replaces: 3196076) Special Order $ 330.36

W11839019 Anti-tip Kit   (Replaces: 9757976) In-Stock Immediately $ 28.54

3196155 Harness, Wire (cooktop) Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

9758173 Harness, Wire, Door Switch/sensor Appelez-nous -
4454072 Harness, Wire (oven Light) Appelez-nous -
3184020 Wire, Ground   (Replaces: 311227) Special Order $ 86.92

WP3196154 Screw   (Replaces: 3196154) Special Order $ 8.44

313660 Clip, Wire Ground Appelez-nous -
W11244557 Screw, Ground   (Replaces: 3196173) Special Order $ 14.29

N/A Miscellaneous Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

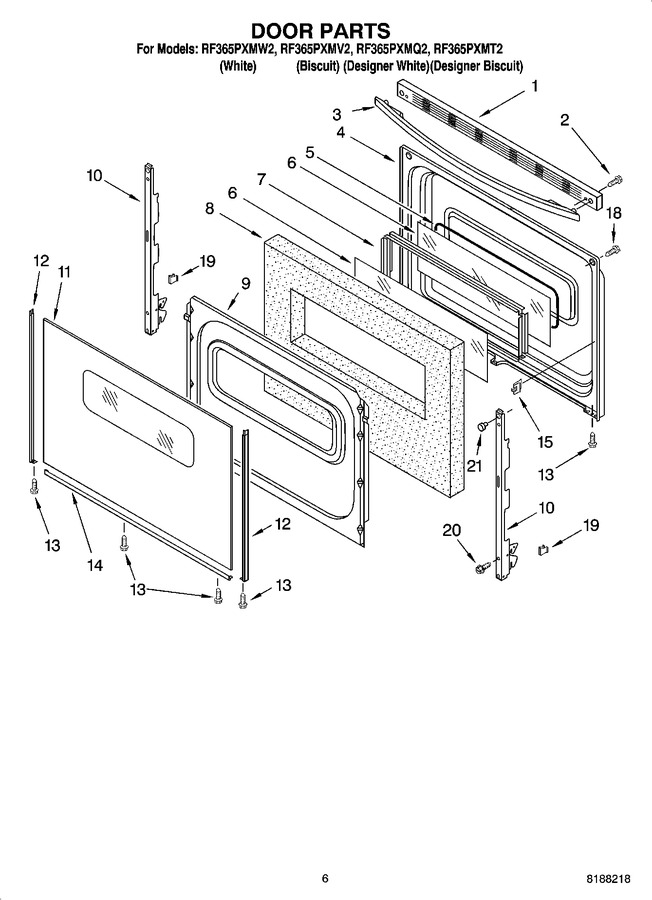

    View Diagram in Separate Window     Print Icon   Print Part List
