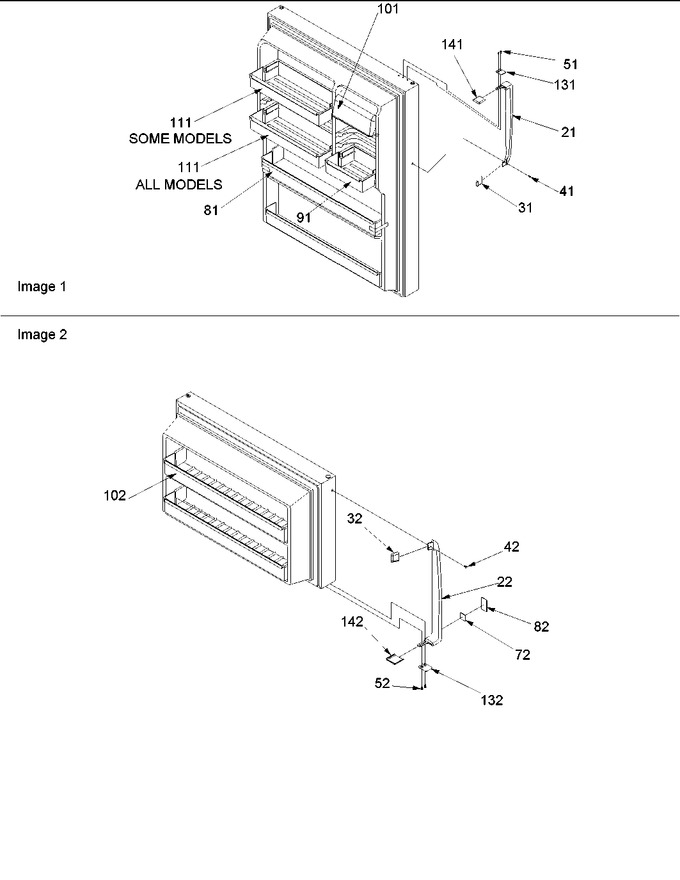

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	12325508		Handle,hard Ref Dr(bisque)		Appelez-nous	-
22	12325507		Handle,hard Fz Dr(bisque)		Appelez-nous	-
31	10907409		Cap,ref Dr Handle(bisque)		Appelez-nous	-
32	10907410		Cap,fz Handle(bisque)		Appelez-nous	-
41	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
42	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
51	M0221744		Screw-sm Shldr		Appelez-nous	-
52	M0221744		Screw-sm Shldr		Appelez-nous	-
72	10926601		Nameplate, Handle		Appelez-nous	-
81	10183121		Retainer, Ref Door		Appelez-nous	-
82	10992125		Insert,nameplate(bisque)		Appelez-nous	-
91	10502912		Bucket, Ref Door		Appelez-nous	-
101	10423414		Door,dairy		Appelez-nous	-
102	10419015		Retainer, Ref Door		Appelez-nous	-
111	10416911		Shelf, Ref Door		Appelez-nous	-
131	12044401		Clip-door Cap		Appelez-nous	-
132	12044401		Clip-door Cap		Appelez-nous	-
141	10913505		Cap,dr Handle(bisque)		Appelez-nous	-
142	10913505		Cap,dr Handle(bisque)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
