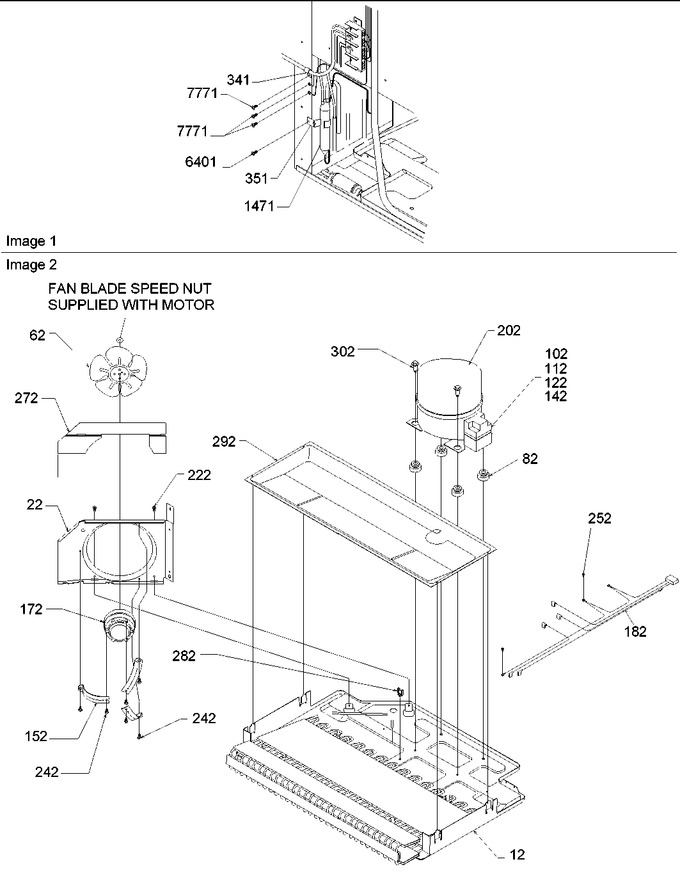

09 - Machine Compartment


10 - Shelving & Crisper Frame Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10481220		Assy, Cond Pan		Appelez-nous	-
22	10426911		Cond Fan Shrd-e Ct		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
102	YB8358601		Bale Strap		Appelez-nous	-
112	10377024		Overload		Appelez-nous	-
122	WP10097204		Relay-ptc   (Replaces: 10097204)				$ 137.72
142	C8960801		Term Cover		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	833697		Motor-condensor   (Replaces: 10884506)			Immediately	$ 88.15
182	12346502		Harness, Mach Comp		Appelez-nous	-
202	W10309994		Compressor   (Replaces: 10927205)			Immediately	$ 643.55
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
242	M0223816		Screw, Tr				$ 5.27
252	M0253916		Screw		Appelez-nous	-
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427405		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
341	M0103904		Clamp, Speed		Appelez-nous	-
351	10547001		Clip, Drier		Appelez-nous	-
1471	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
6401	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
7771	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
