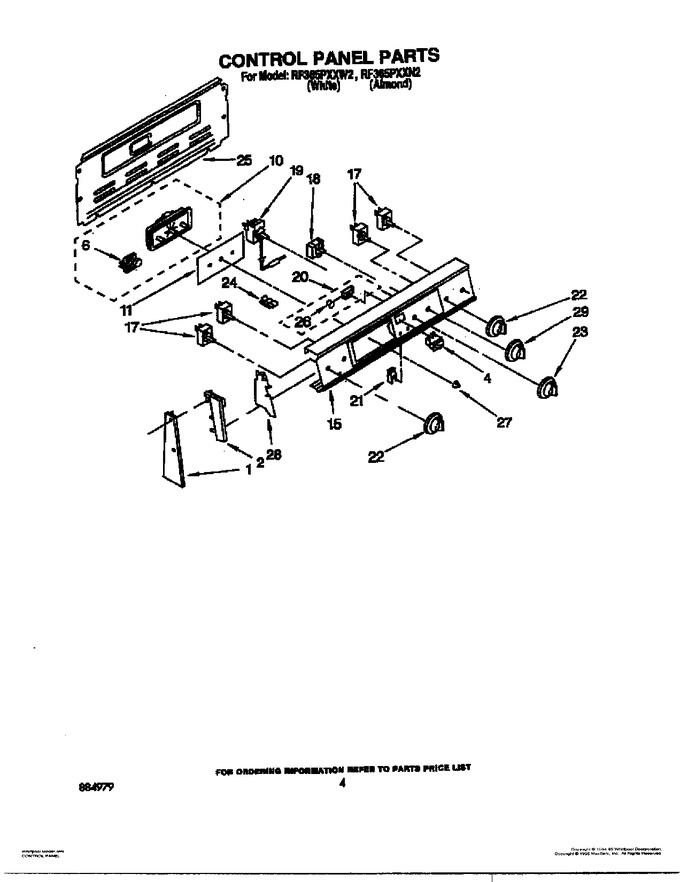

03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Unit


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
4	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 89.48
6	309822		Motor, Timer		Appelez-nous	-
10	3149505		Timer, Clock (includes No.6)		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
11	313513		Glass, Timer		Appelez-nous	-
15	3150628		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
17	WP3148952		Switch, Infinite (6`` Element (2))   (Replaces: 3148952)			Immediately	$ 69.51
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
17	WP3149400		Switch, Infinite (8`` Element (2))   (Replaces: 3148954)			Immediately	$ 90.51
18	WP965173		Screw, 8-32 X 1/4 (2)   (Replaces: 3150344)			Immediately	$ 10.72
18	3148419		Switch, Selector (5 Position)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
19	3148933		Thermostat, 0ven Pyro				$ 181.60
20	314031		Light, Indicator (oven Unit On) (includes Illus. 26)				$ 62.88
21	3150647		Light, Indicator (surface Unit On) (includes Illus. 26)		Appelez-nous	-
22	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 23.23
23	3149988		Knob, Thermostat		Appelez-nous	-
24	313570		Tube Clip		Appelez-nous	-
25	313195		Rear Cover Control Panel		Appelez-nous	-
25	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
26	313101		Lens, Amber (2)		Appelez-nous	-
27	3169182		Knob, Timer (3)		Appelez-nous	-
28	313608		Shield, Glass (2)		Appelez-nous	-
28	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
29	3149986		Knob, Selector				$ 23.95
