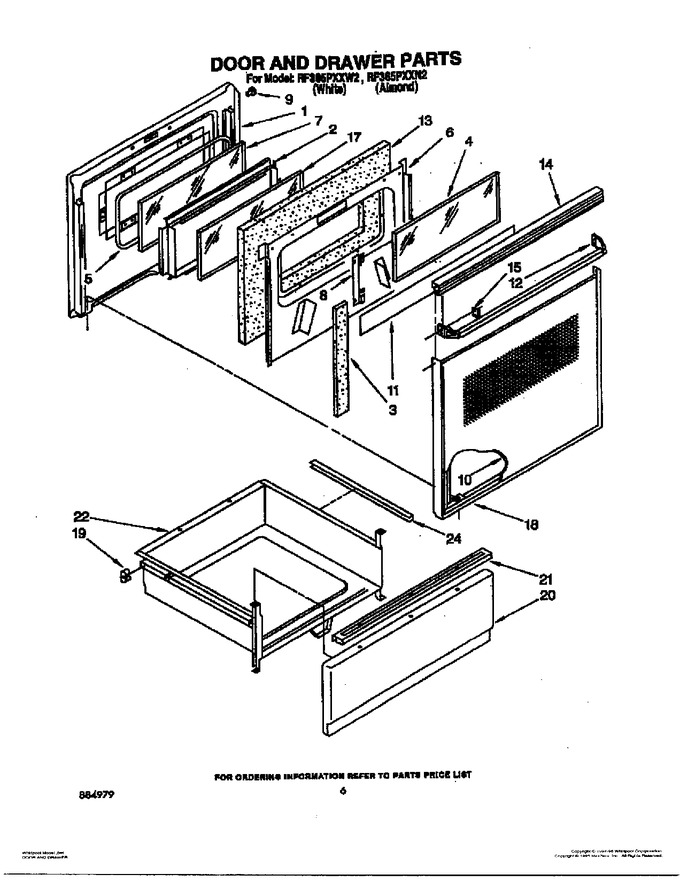

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Oven Door		Appelez-nous	-
2	3148234		Frame, Glass		Appelez-nous	-
2	3148443		Screw (6)		Appelez-nous	-
3	3148441		Seal, Foam		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inside   (Replaces: 313004)				$ 150.79
8	3148443		Screw (4)		Appelez-nous	-
8	3148187		Retainer, Glass		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Door		Appelez-nous	-
11	3148184		Foil		Appelez-nous	-
12	3148228		Handle, Door		Appelez-nous	-
13	3147951		Insulation, Door		Appelez-nous	-
14	3148223		Top, Door		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 150.79
18	WP355515		Screw (4)   (Replaces: 355515)				$ 7.67
18	3148235		Frame, Glass		Appelez-nous	-
18	3182345		Screw (3)		Appelez-nous	-
19	307748		Screw (2)		Appelez-nous	-
19	307980		Glide, Rear		Appelez-nous	-
20	307939		Panel, Drawer (almond)		Appelez-nous	-
20	307935		Panel Drawer (white)		Appelez-nous	-
21	313337		Handle, Drawer		Appelez-nous	-
21	WP488627		Screw (2)   (Replaces: 300128)				$ 7.57
22	327887		Drawer, Utility		Appelez-nous	-
24	309329		Protector, Drawer (2)		Appelez-nous	-
