Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10459903 Extr., Front Shelf Appelez-nous -
2 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

3 A3189340 Gasket Foam Appelez-nous -
4 10450314 Extr, Meat Kpr Front Appelez-nous -
5 10562502 Ext, Gl Shelf Side Appelez-nous -
6 10370010 Shelf, Glass Appelez-nous -
7 10681402 Rail, Pntd Appelez-nous -
8 10451401 Extr Mk Rear Appelez-nous -
9 10417301 Glide, Meat Kpr. Appelez-nous -
10 10432101 Glide, Meat Kpr. Appelez-nous -
11 10642102 Cover, Mt Kpr Air Supply Appelez-nous -
12 10479401 Control, Mt. Kpr. Air Sup Appelez-nous -
13 10479103 Tunnel, Mt Kpr Appelez-nous -
14 10565701 Insert, Mk Control Appelez-nous -
15 10417014 Pan,meatkeeper Appelez-nous -
16 10459801 Extrus. Rear Shelf Appelez-nous -
17 10460102 Shelf, Deli Frame Appelez-nous -
18 10370011 Glass, Shelf Appelez-nous -
NI 10480409 Assy, Glass Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

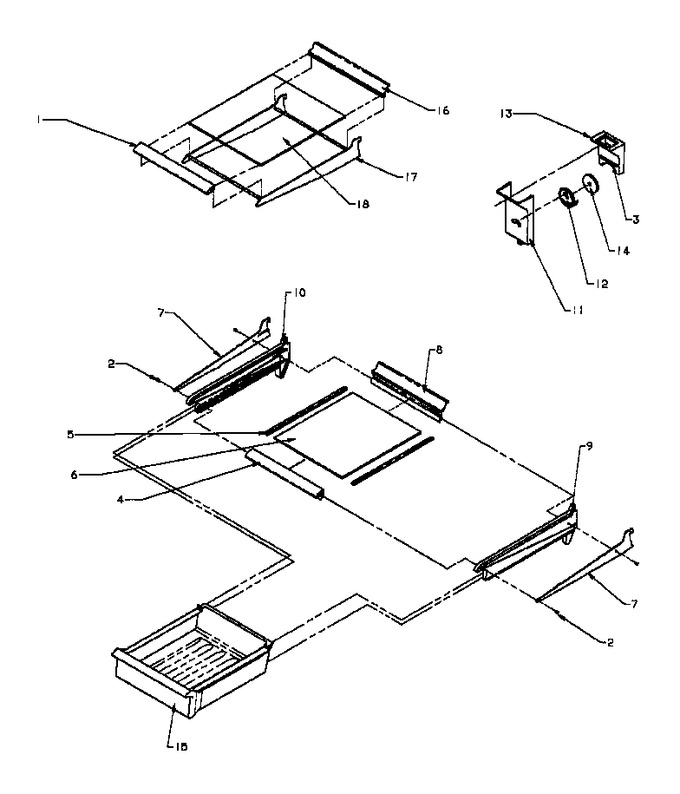

Diagram for TK21R3L (BOM: P1189001W L)
