Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

2 10435505 Frame, Ref Top Brk Appelez-nous -
3 10645602 Extrusion, Rear Light Appelez-nous -
4 10433333 Mullion, Center (almond) Appelez-nous -
5 10685503 Gasket, Sealing Appelez-nous -
6 10508701 Shield, Refrig. Light Appelez-nous -
7 10435913 Tray, Drip Appelez-nous -
8 10543602 Heater, Mullion Appelez-nous -
9 10430605 Freezer Bottom Appelez-nous -
10 D7714406 Socket, Angle Appelez-nous -
11 10669701 Kit, Drain Blk/frz Floor Appelez-nous -
12 10437122 Top, Refrig. (e-coat) Appelez-nous -
13 10573502 Harness-mullion Appelez-nous -
14 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

15 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

16 10772301 Insulation Appelez-nous -
17 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

18 10440404 Duct, Frz Air Appelez-nous -
19 10433605 Plate, Center Tap Appelez-nous -
20 10481401 Clip, Grounding Appelez-nous -
21 B5733301 Clip Ground Appelez-nous -
22 B5759626 Gasket, Sealing Appelez-nous -
23 10476401 Insert-drain Blk Appelez-nous -
24 10450820 Membrane, Breaker Appelez-nous -
25 10453001 Cap, Switch Appelez-nous -
26 10565401 Knob, Control Appelez-nous -
27 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

28 M0211530 Screw Appelez-nous -
29 10479202 Insert, Mt. Kpr. Air Sup Appelez-nous -
30 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

31 M0211520 Screw - Sm Appelez-nous -
32 Y00000000 See Note Control Assembly -- (see Pages 24 And 25 For Parts Breakdown) Appelez-nous -
33 10594901 Gasket, Mk Air Supply Appelez-nous -
34 10779602 Insul. Air Duct Appelez-nous -
35 B0523584 Insulation Per Ft. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

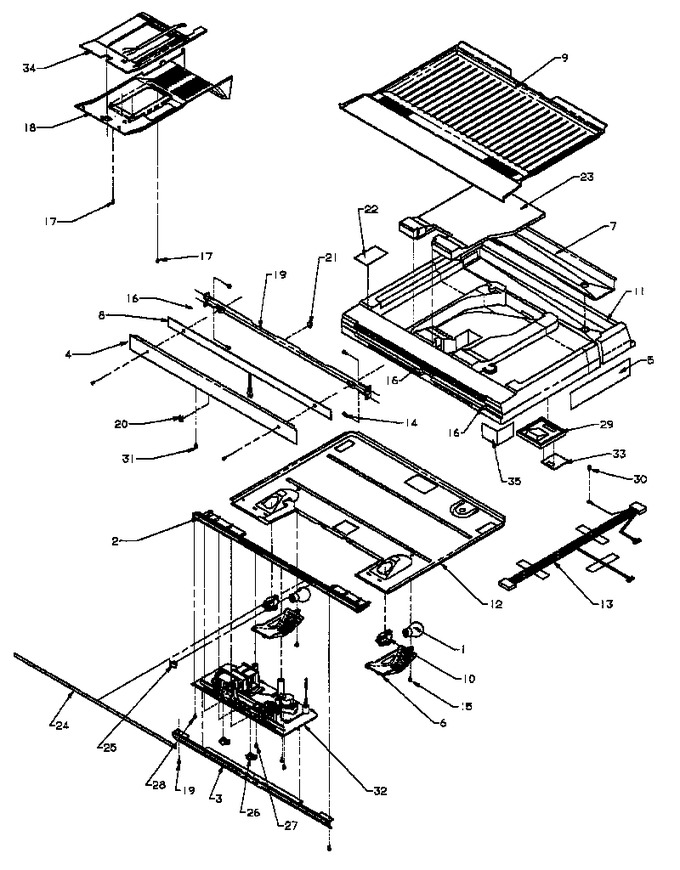

Diagram for TK21R3L (BOM: P1189001W L)
