SELECT A DIAGRAM
01 - Cabinet Back
02 - Cabinet Bottom And Back
03 - Divider Block And Controls
04 - Evap Area
05 - Fz Door
06 - Fz Door
07 - Page 4
08 - Panasonic Compressor
SELECT A DIAGRAM
New Model Search:

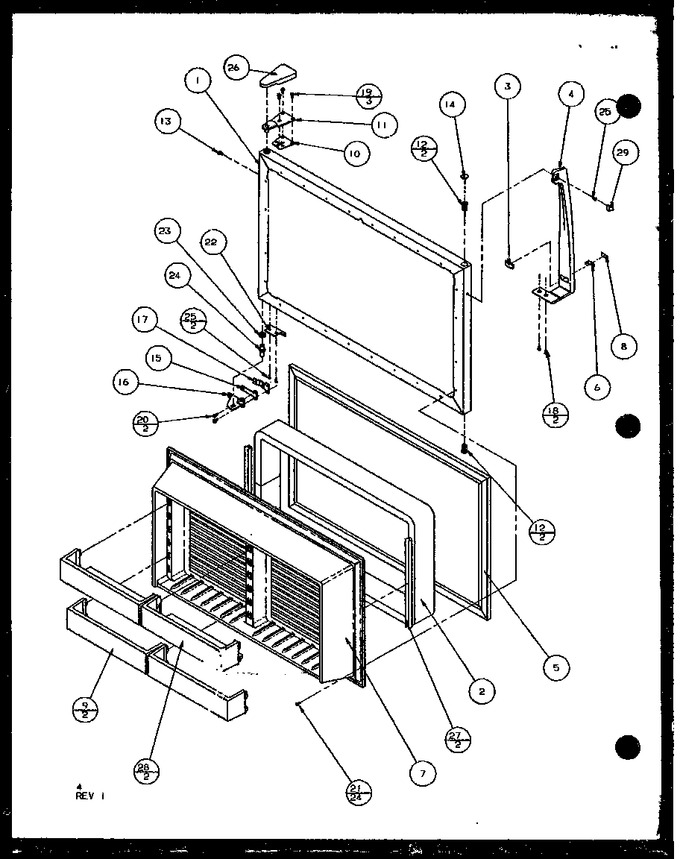

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10253812GQ | Fz Dr Foamed As Cfc11 |
|
- | |||||
| 1 | 10253812WQ | Fz Dr Foamed As Cfc11 |
|
- | |||||
| 1 | 10253812LQ | Fz Dr Foamed As Cfc11 |
|
- | |||||
| 2 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 243.14 | |||||
| 3 | 10184301 | Plug-nameplate W |
|
- | |||||
| 3 | 10184303 | Plug-l Nameplate |
|
- | |||||
| 3 | 10184302 | Plug-nameplate G |
|
- | |||||
| 4 | 10253505 | Handle Assy Fz L |
|
- | |||||
| 4 | 10253501 | Handle Assy Fz W |
|
- | |||||
| 4 | 10253503 | Handle Assy Fz G |
|
- | |||||
| 6 | 10184501 | Pad Nameplate |
|
- | |||||
| 7 | D7869607 | Inner Door Panel Fz. |
|
- | |||||
| 8 | 10184401 | Nameplate, Handle |
|
- | |||||
| 9 | D7869802 | Retainer, Cant. Door |
|
- | |||||
| 10 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 10 | B8389003 | Shim, Top Hinge, .016 |
|
- | |||||
| 10 | B8389002 | Shim Top Hinge |
|
- | |||||
| 11 | B5744301 | Hinge |
|
- | |||||
| 12 | 10392602 | Bushing |
|
- | |||||
| 13 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 13 | M0310704 | Plug |
|
- | |||||
| 13 | M0310714 | Plug |
|
- | |||||
| 14 | M0310606 | Plug |
|
- | |||||
| 14 | M0310608 | Plug |
|
- | |||||
| 14 | M0310601 | Plug |
|
- | |||||
| 15 | B8351403 | Shim, Center Hinge |
|
- | |||||
| 15 | B8351401 | Shim K |
|
- | |||||
| 15 | B8351402 | Shim K |
|
- | |||||
| 16 | C8948601 | Center Hinge Bracket |
|
- | |||||
| 17 | C8925502 | Strip Hinge Top |
|
- | |||||
| 18 | WPW10348409 | Screw (Replaces: M0222429) |
|
Immediately | $ 8.20 | ||||
| 19 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 20 | W11573362 | Screw, T. F. (Replaces: M0226232) |
|
$ 14.72 | |||||
| 21 | M0219730 | Screw |
|
$ 7.65 | |||||
| 22 | 10266101 | Stop Door |
|
- | |||||
| 23 | M0274049 | Washer |
|
- | |||||
| 24 | B8373101 | Center Pin Hinge |
|
- | |||||
| 25 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 8.20 | ||||
| 26 | D7872104 | Cover Hinge |
|
- | |||||
| 26 | D7872103 | Cover Hinge L |
|
- | |||||
| 26 | D7872105 | Cover Hinge L |
|
- | |||||
| 27 | C8987106 | Seal Door Dike |
|
- | |||||
| 28 | D7869902 | Shelf, Door |
|
- | |||||
| 29 | 10201805 | Cover- Hndl Screw Almond |
|
- | |||||
| 29 | 10201803 | Cover-handle Screw G |
|
- | |||||
| 29 | 10201801 | Cover-handle Screw W |
|
- |
