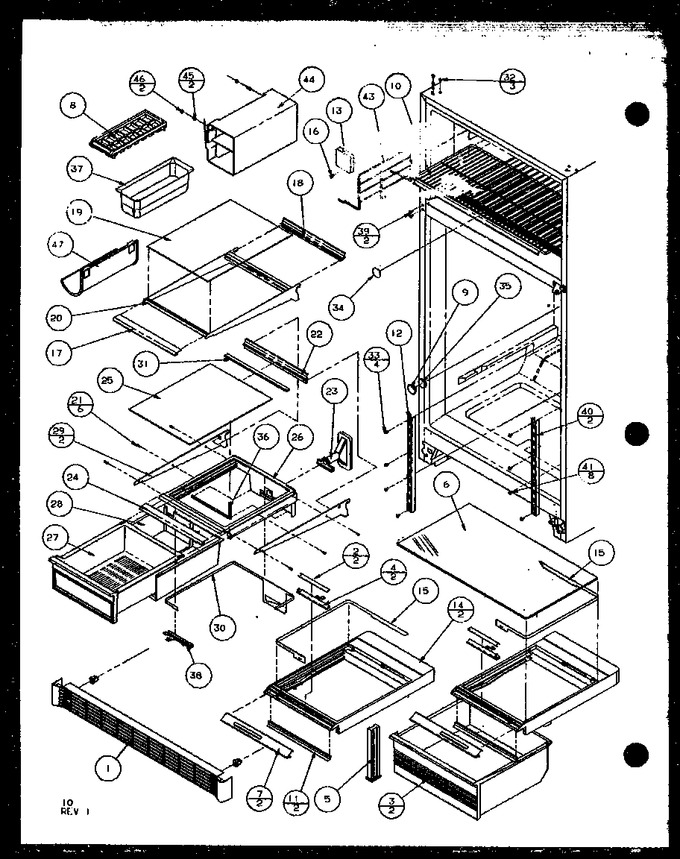

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520510		Grille-toe-b K				$ 44.22
1	D7520512		Grille-toe K		Appelez-nous	-
1	D7520513		Grille-toe		Appelez-nous	-
2	10199901		Insert, Crisper Slide		Appelez-nous	-
3	D7581025		Pan Crisper		Appelez-nous	-
4	10199801		Slide Crisper Control		Appelez-nous	-
4	10199802		Slide, Crisper Control		Appelez-nous	-
5	10199701		Post, Crisper Support		Appelez-nous	-
6	D7421260		Glass Crisper Top Gg		Appelez-nous	-
7	D7616669		Trim, Front Crisper		Appelez-nous	-
7	D7616668		Trim, Front Crisper		Appelez-nous	-
8	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
9	M0310314		Plug		Appelez-nous	-
10	D7580706		Shelf, Frz		Appelez-nous	-
11	D7718402		Seal Crisper		Appelez-nous	-
12	D7599002		Ladder, Center		Appelez-nous	-
13	D7874402		Cover-fl Tb/plug		Appelez-nous	-
14	10182506		Frame Crisper		Appelez-nous	-
14	10182505		Frame Crisper		Appelez-nous	-
15	10200001		Band, Crisper Control		Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
17	10049909		Trim, Shelf		Appelez-nous	-
18	C8913601		Trim, Shelf		Appelez-nous	-
19	D7421285		Glass Shelf		Appelez-nous	-
20	D7871003		Frame, Cant.		Appelez-nous	-
21	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
22	C8990401		Trim, Rear Shelf		Appelez-nous	-
23	D7859306		Grommet M.k.		Appelez-nous	-
24	10049911		Trim		Appelez-nous	-
25	D7421257		Glass Shelf M.k		Appelez-nous	-
26	D7853301		Frame, M.k		Appelez-nous	-
27	D7698316		Meat Pan		Appelez-nous	-
28	D7698105		Sleeve, Meat Keeper		Appelez-nous	-
29	D7862905		Blank Side Rail		Appelez-nous	-
29	D7862906		Blank Side Rail		Appelez-nous	-
30	D7859503		Band M.k. Control		Appelez-nous	-
31	10043101		Ext. Rear Glass		Appelez-nous	-
32	M0310716		Plug		Appelez-nous	-
32	M0310720		Plug		Appelez-nous	-
32	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 5.98
33	M0230923		Screw		Appelez-nous	-
34	M0310305		Plug, Button (wht)		Appelez-nous	-
35	B8362502		Insul. Mk Plug		Appelez-nous	-
36	A3263905		Gasket-per Ft		Appelez-nous	-
37	D7620010		Ice Bin		Appelez-nous	-
38	D7859401		Slide-mk Control		Appelez-nous	-
39	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
40	D7599105		Ladder, Side		Appelez-nous	-
41	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
43	D7806002		Divider, Wire		Appelez-nous	-
44	D7620106		Rack, Ice Service		Appelez-nous	-
45	M0219559		Screw		Appelez-nous	-
46	M0270508		Washer		Appelez-nous	-
47	D7547604		Bottle Rack		Appelez-nous	-
NI	10259602		Crisper Fram Assy		Appelez-nous	-
NI	D7871137		Glass Shelf Assembly		Appelez-nous	-
NI	Y00000000		See Note Add-on Ice Maker -- (avalable Through Sales, Ic3q)		Appelez-nous	-
NI	10259603		Crisper Fram Assy		Appelez-nous	-
NI	D7871138		Glass Shelf Assembly		Appelez-nous	-
