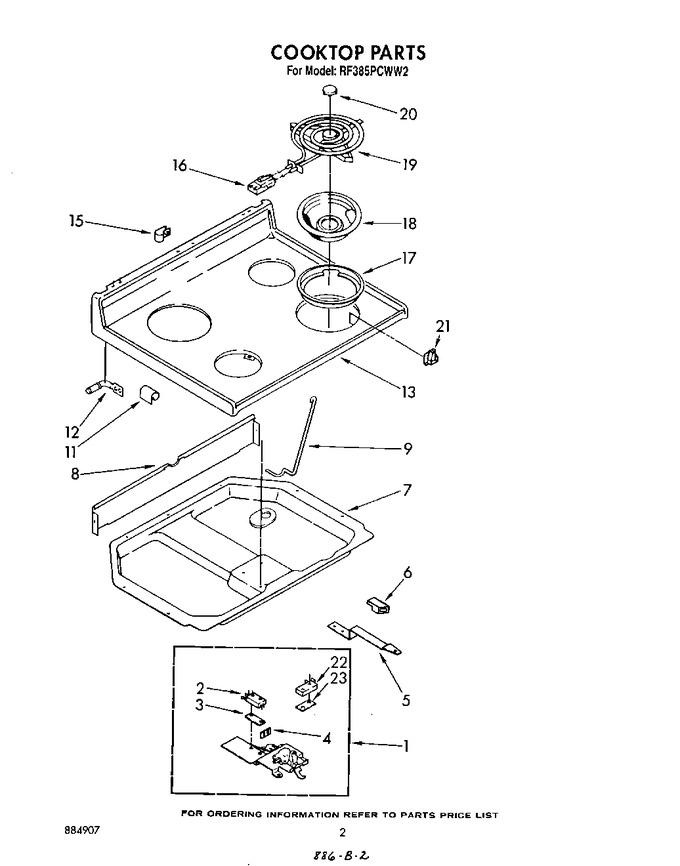

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
1	3171148		Latch Assembly		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch		Appelez-nous	-
4	309258		Screw,6-3/8 (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	3147065		Handle, Latch		Appelez-nous	-
6	155023		Screw,			Immediately	$ 7.91
6	3148684		Knob, Latch		Appelez-nous	-
7	3150186		Box, Burner		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.82
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	307973		Shield, Wiring		Appelez-nous	-
9	WP681414		Screw, 10-32 X 1/2 (ground)   (Replaces: 690989)			Immediately	$ 7.85
9	3148659		Rod, Cooktop		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.20
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 16.09
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 7.60
17	W10854470		Adapter Ring (6`` (2))   (Replaces: 3150244)				$ 90.41
17	W10858781		Adapter Ring (8`` (2))   (Replaces: 3150245)				$ 95.16
18	W10291024		Reflector Pan (8`` (2))   (Replaces: 3150199)			Immediately	$ 55.44
18	3150198		Reflector Pan (6`` (2))		Appelez-nous	-
19	WP660533		Unit, Surface (8`` (2) (includes Illus. 20))   (Replaces: 660533)			Immediately	$ 43.86
19	WP660532		Unit, Surface (6`` (2))   (Replaces: 660532)			Immediately	$ 41.00
20	309195		Medallion (4)		Appelez-nous	-
21	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
21	814102		Nut (4)				$ 5.27
21	814103		Hold Down Clip (4)   (Replaces: 3148790)				$ 10.02
22	3148669		Switch, Lock		Appelez-nous	-
23	3147864		Insulator, Switch		Appelez-nous	-
