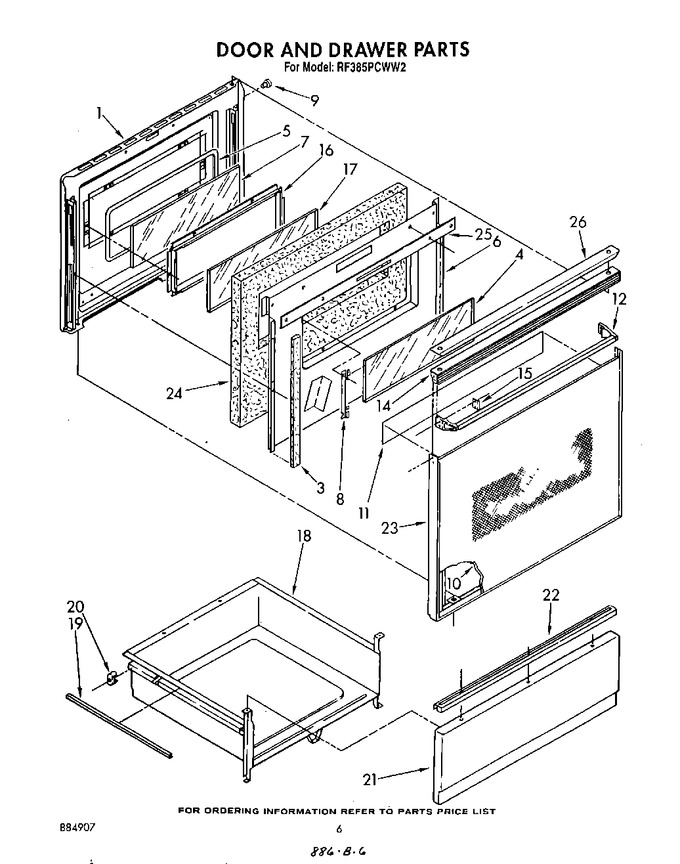

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
3	3148441		Seal, Fiberglass (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, Inside   (Replaces: 313004)				$ 150.79
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3149050		Glass, Panel (almond)		Appelez-nous	-
10	3149049		Glass, Panel (white)		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	3148228		Handle, Door (almond Model)		Appelez-nous	-
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 7.67
12	3149354		Handle, Door (white Model)		Appelez-nous	-
14	3149355		Top, Door (white Model)		Appelez-nous	-
14	3149333		Top, Door (screw (2))				$ 5.33
14	3148223		Top - Door (almond Model)		Appelez-nous	-
14	WP308685		Top - Door (screw (2))   (Replaces: 9416643)			Immediately	$ 7.87
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 150.79
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 10.58
21	307935		Panel Drawer (white)		Appelez-nous	-
22	313337		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 7.57
23	3148235		Frame, Door		Appelez-nous	-
24	3147951		Insulation		Appelez-nous	-
25	3148680		Shield - Door (white Model)		Appelez-nous	-
26	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
26	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
26	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
26	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
26	285368		Platinum (uncut)		Appelez-nous	-
26	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
26	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 83.07
26	261582		Grease		Appelez-nous	-
26	3147861		Dressing, Element		Appelez-nous	-
26	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
26	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
26	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
26	3149473		Cap - Top (white Model)		Appelez-nous	-
26	WP308685		Screw (2)   (Replaces: 9416643)			Immediately	$ 7.87
26	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
26	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
26	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
26	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
26	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
26	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
26	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
26	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
26	242831		Wire (14 Ga. 200 C Red)				$ 342.23
26	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
26	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
26	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
26	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
26	72108		Paint, Touch-up 1/2 Oz. (coffee)		Appelez-nous	-
26	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
26	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
26	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
26	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
26	261888		New Avocado		Appelez-nous	-
26	261886		Coffee		Appelez-nous	-
26	261890		Harvest Gold		Appelez-nous	-
26	285365		Toast		Appelez-nous	-
26	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
26	285006		Paint, Spray 13 Oz. (black)				$ 57.04
26	350942		Primer (white)   (Replaces: 206922)				$ 89.66
26	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
26	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
26	978883		Almond (uncut)		Appelez-nous	-
26	261889		New Avocado (uncut)		Appelez-nous	-
26	261887		Coffee (uncut)		Appelez-nous	-
26	261891		Harvest Gold (uncut)		Appelez-nous	-
26	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
