SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assy


03 - Door, Hinges & Accessories


04 - Evaporator & Fan Motor Assy


05 - Ice Maker Assy & Parts


06 - Interior Cabinet & Drain Block Assy


07 - Ladders & Lower Cabinet


08 - Machine Compartment


09 - Shelving Assy

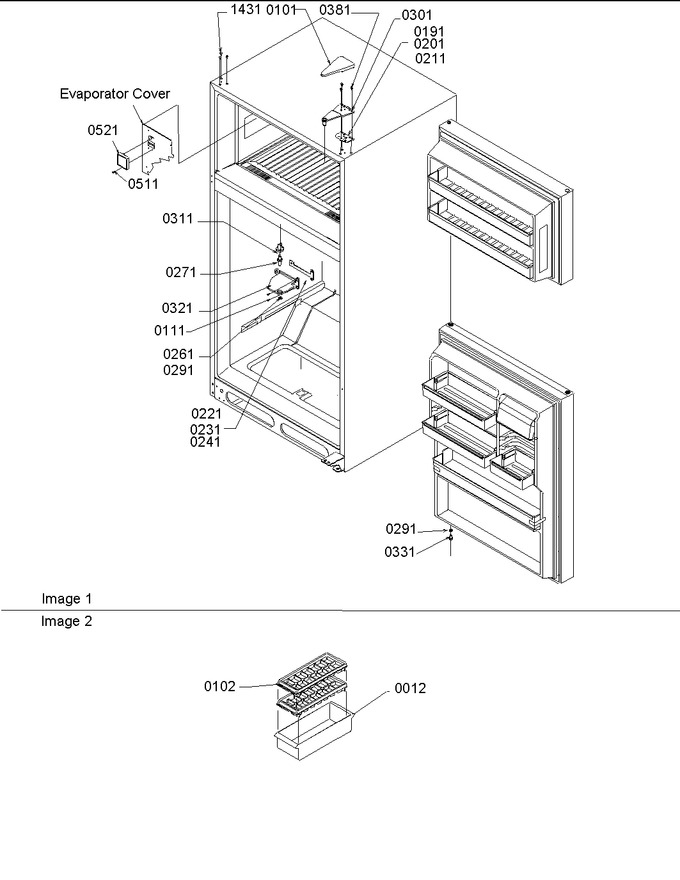

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	10444708		Cover-w Hinge		Appelez-nous	-
111	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
191	10448501		Shim, Top Hinge		Appelez-nous	-
201	10448502		Shim, Top Hinge		Appelez-nous	-
211	10448503		Shim, Top Hinge		Appelez-nous	-
221	10562201		Shim, Center Hinge		Appelez-nous	-
231	10562202		Shim, Center Hinge		Appelez-nous	-
241	10562203		Shim, Center Hinge		Appelez-nous	-
261	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
271	10351002		Pin, Hinge (ctr)		Appelez-nous	-
291	M0274058		Shim, Non Metal (wht)				$ 5.83
301	5303918507		Assy, Top Hinge   (Replaces: 12077303)				$ 956.29
311	12028501		Closure, Door (wht)				$ 6.67
321	12446503		Hinge,ctr-e Ct(white)		Appelez-nous	-
331	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
521	D7874403		Cover-fl Tb/plug		Appelez-nous	-
1431	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98

    View Diagram in Separate Window       Print Part List
