Diagram # Part Number Description Series Availability Ships Price Add to Cart
31 M0310330 Plug, Button White Appelez-nous -
301 67006425 Screw, Sm   (Replaces: M0238642) In-Stock Immediately $ 7.30

331 12435701 Ladder, Side (l/r) Appelez-nous -
371 10585505 Hinge, Bottom Appelez-nous -
381 10447904 Shim Hinge Appelez-nous -
391 10447903 Shim, Btm Hinge Appelez-nous -
431 A3076901 Plug-button Special Order $ 5.70

451 10450701 Roller, Rear Special Order $ 28.91

461 10450901 Axle, Roller Appelez-nous -
471 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

501 M0204336 Screw, Adj Roller Appelez-nous -
511 12452601Q Assy, Roller Bracket Appelez-nous -
521 M0260242 Screw, Tf Appelez-nous -
531 W11573574 Screw, Sm   (Replaces: M0211031) In-Stock Immediately $ 14.72

541 10663001 Insul., R. Foot Appelez-nous -
591 10427110 Cabinet Brace-pnt Appelez-nous -
811 10474902 Grille, Toe (white) (19) Appelez-nous -
831 10551502 Clip, Toe Grille Special Order $ 5.84

841 M0227217 Screw, Sm Appelez-nous -
851 10547101 Clip, Tube Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

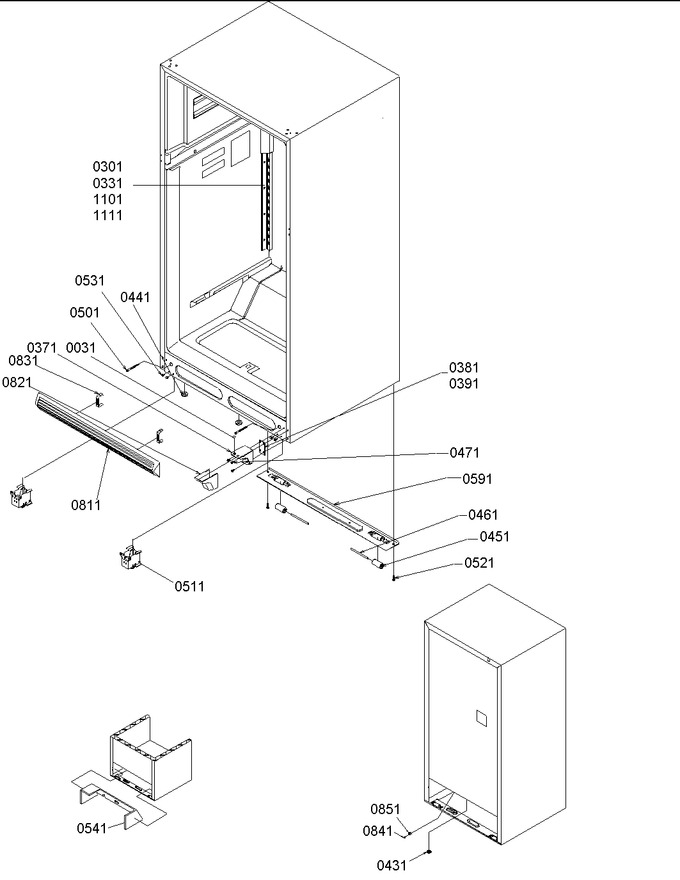

Diagram for TM18V2W (BOM: P1318006W W)
