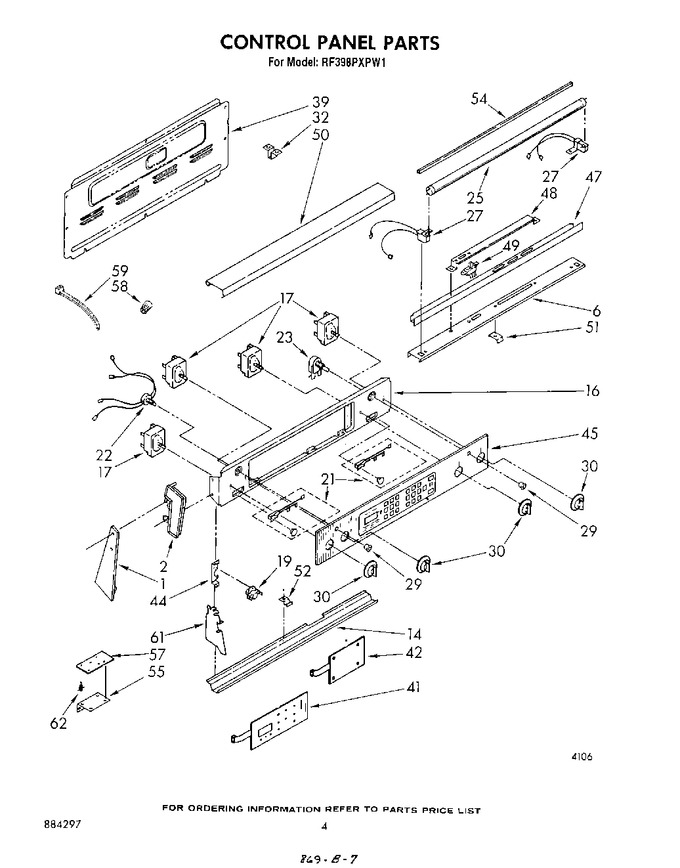

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313189		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
2	313182		End Cap R.h.		Appelez-nous	-
2	313181		End Cap L.h.		Appelez-nous	-
6	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
6	313199		Trim, Top		Appelez-nous	-
14	313423		Trim, Bottom		Appelez-nous	-
14	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
14	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
16	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
16	313581		Bracket, Control Mounting		Appelez-nous	-
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
17	W10900107		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 311836)			Immediately	$ 57.63
17	W10900107		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311837)			Immediately	$ 57.63
19	LS2-175		Thermostat, Oven   (Replaces: 341197)			Immediately	$ 27.33
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
21	313106		Light, Indicator (2) (includes Amber Lens No.311688)		Appelez-nous	-
22	313348		Switch, Fluorescent Light		Appelez-nous	-
22	255912		Nut, 3/8 X 27 (2)		Appelez-nous	-
22	312796		Lockwasher (2)		Appelez-nous	-
23	312796		Lockwasher		Appelez-nous	-
23	255912		Nut, 3/8 X 27		Appelez-nous	-
23	312581		Switch, Oven Light		Appelez-nous	-
25	313110		Lamp, Fluorescent		Appelez-nous	-
27	313193		Socket, Fluorescent Light L.h.		Appelez-nous	-
27	313194		Socket, Fluorescent Light R.h.		Appelez-nous	-
27	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
29	313030		Bezel, Switch (2)		Appelez-nous	-
30	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
30	330171		Knob, Control (4)		Appelez-nous	-
32	WPW10116756		Spacer (2)   (Replaces: 313582)				$ 48.56
39	WP681414		Screw, 10-16 X 1/2 (12)   (Replaces: 343641)			Immediately	$ 7.85
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 7.60
41	61053		Clip		Appelez-nous	-
41	3170266		Board, Power Control		Appelez-nous	-
42	3170267		Board, Power Supply		Appelez-nous	-
42	WP313808		Screw, 6-32 X 1/4 (8)   (Replaces: 311932)				$ 7.60
44	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
44	313387		Bracket, Thermostat		Appelez-nous	-
45	991099931		Glass, Touch Panel   (Replaces: 313206)				$ 0.02
47	313399		Backguard, Lamp		Appelez-nous	-
47	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
48	313087		Support, Clip		Appelez-nous	-
48	313580		Cover, Slide Switch		Appelez-nous	-
48	246131		Screw, 6ab X 3/8 (4)		Appelez-nous	-
48	313425		Switch		Appelez-nous	-
50	3147773		Cover, Lamp		Appelez-nous	-
51	313486		Support, Wedge Top		Appelez-nous	-
51	246131		Screw, 6ab X 3/8		Appelez-nous	-
52	313482		Support, Wedge Bottom		Appelez-nous	-
52	246131		Screw, 6ab X 3/8		Appelez-nous	-
54	313444		Protector, Lamp Backguard		Appelez-nous	-
55	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
55	313485		Bracket, Relay		Appelez-nous	-
57	3147980		Relay, Pc Board		Appelez-nous	-
58	WP75614		Connector (3)   (Replaces: 309551)				$ 49.34
59	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.90
61	313609		Shield, Glass (2)		Appelez-nous	-
61	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
62	313087		Support (5)		Appelez-nous	-
