02 - Cook Top
03 - Control Panel
04 - Door And Drawer
05 - Oven , Literature And Optional
06 - Section
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

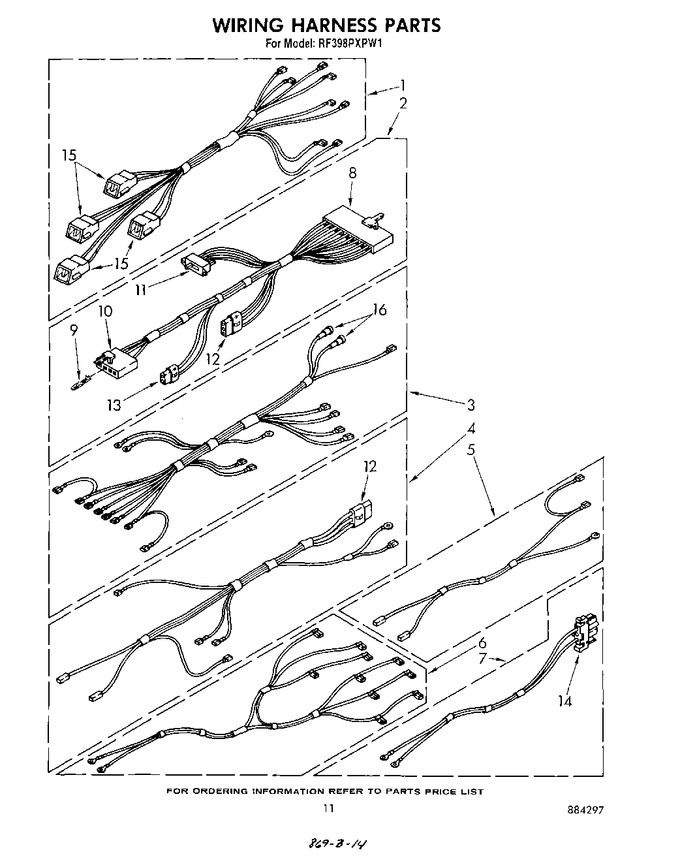

| 1 | 313148 | Harness, Wire (surface Unit) |
|
- | |||||
| 2 | 313904 | Harness, Wire (electronic) |
|
- | |||||
| 3 | 313208 | Harness, Wire (main) |
|
- | |||||
| 4 | 313478 | Harness, Wire (lockswitch) |
|
- | |||||
| 5 | 313479 | Harness, Wire (oven Light) |
|
- | |||||
| 6 | 313210 | Harness, Wire (infinite Switch) |
|
- | |||||
| 7 | 313903 | Harness, Wire (ac Supply) |
|
- | |||||
| 8 | 308566 | Block, Disconnect |
|
- | |||||
| 9 | 308564 | Terminal |
|
- | |||||
| 10 | 308990 | Block, Disconnect |
|
- | |||||
| 11 | 313425 | Switch |
|
- | |||||
| 12 | 814025 | Housing, Terminal |
|
- | |||||
| 13 | 814026 | Housing, Terminal |
|
- | |||||
| 14 | 311150 | Block, Disconnect |
|
- | |||||
| 15 | 330031 | Receptacle |
|
Immediately | $ 16.09 | ||||
| 16 | 351297 | Housing, Terminal |
|
- |
