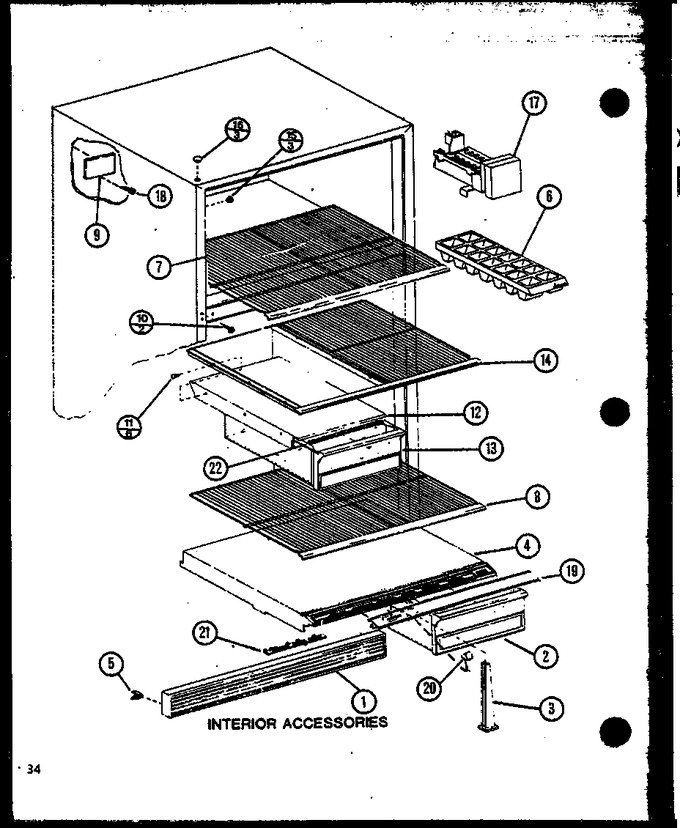

03 - Interior Accessories


04 - Rear Components


05 - Ref Door Parts


06 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520505		Grille-toe		Appelez-nous	-
2	D7581003		Net Pan, Crisper		Appelez-nous	-
3	D7602202		Crisper Support Post		Appelez-nous	-
4	D7616506		Crisper Top,assy		Appelez-nous	-
5	M0117301		Clip, Grille		Appelez-nous	-
6	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
7	D7580706		Shelf, Frz		Appelez-nous	-
8	D7583806		Shelf, Wire		Appelez-nous	-
9	D7874401		Cover Fill Tube		Appelez-nous	-
10	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
11	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
12	D7698205		Top M.k		Appelez-nous	-
13	D7710516		Net-drawer,deli		Appelez-nous	-
14	D7584206		Shelf Wire M K		Appelez-nous	-
15	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
16	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
16	M0310720		Plug		Appelez-nous	-
16	M0310716		Plug		Appelez-nous	-
18	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
19	D7616650		Trim, Crisper Front		Appelez-nous	-
20	C8908301		Knob Humidity A-k		Appelez-nous	-
21	D7587705		Slide Humidity		Appelez-nous	-
22	D7718401		Seal Meat Pan		Appelez-nous	-
