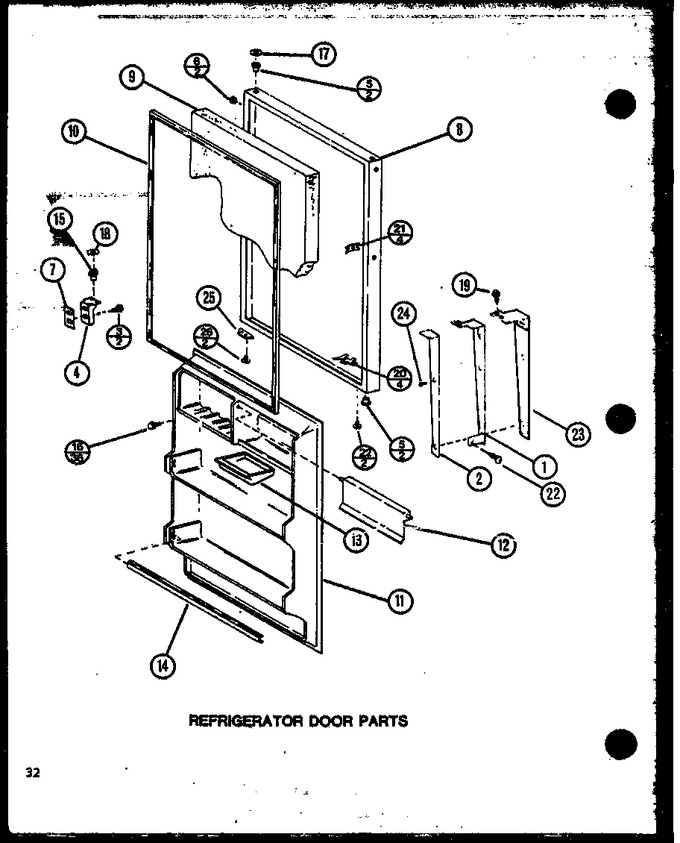

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7744802		Door Handle		Appelez-nous	-
2	D7745006		Pad, Handle Ref		Appelez-nous	-
3	M0246258		Screw		Appelez-nous	-
4	C8814803		Bracket Lower Hinge		Appelez-nous	-
5	C3652901		Bushing, Hinge Pin		Appelez-nous	-
5	C8852202		Bearing, Hinge		Appelez-nous	-
6	M0311302		Plug Button		Appelez-nous	-
6	M0311301		Plug Button		Appelez-nous	-
6	M0311303		Plug Button		Appelez-nous	-
7	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
7	B5744802		Shim		Appelez-nous	-
7	B5744804		Shim, Bottom Hinge		Appelez-nous	-
7	B5744803		Shim		Appelez-nous	-
8	D7745306		Door Ref L Tr20		Appelez-nous	-
8	D7745305		Lower Door Pan, Ref, Gold		Appelez-nous	-
8	D7745304		Dr Ref W Tr20		Appelez-nous	-
9	B5683508		Insulation		Appelez-nous	-
10	D7605109		Gasket				$ 31.30
11	D7652307		Inner Dr Panel-ref		Appelez-nous	-
12	D7604417		Dairy Door		Appelez-nous	-
13	D3799802		Butter Tray		Appelez-nous	-
14	C8907208		Retainer, Pkg		Appelez-nous	-
15	C8814901		Pin, Hinge K		Appelez-nous	-
16	M0219717		Screw		Appelez-nous	-
17	M0274049		Washer		Appelez-nous	-
18	M0274050		Washer		Appelez-nous	-
19	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
20	B8363501		Nut		Appelez-nous	-
21	B8361401		Nut		Appelez-nous	-
22	M0203931		Screw, Tf		Appelez-nous	-
23	D7744908		Pad Outer		Appelez-nous	-
24	M0215115		Screw		Appelez-nous	-
25	C8894802		Door Stop		Appelez-nous	-
26	M0203458		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
