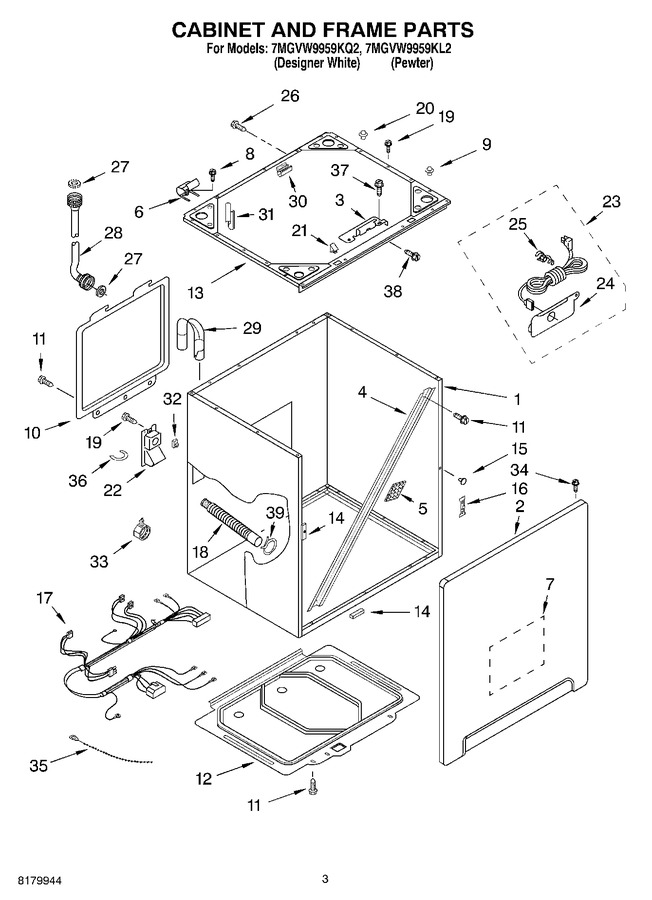

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8522247 | Cabinet (pewter) |
|
- | |||||
| 1 | 8054490 | Cabinet (white) |
|
- | |||||
| 2 | 8318240 | Panel, Front (white) |
|
- | |||||
| 2 | 8522246 | Panel, Front (pewter) |
|
- | |||||
| 3 | 8526005 | Bracket, Top Lock |
|
- | |||||
| 4 | 8283274 | Brace, Cabinet (front) |
|
- | |||||
| 5 | WP8283273 | Damper, Brace (Replaces: 8283273) |
|
$ 28.40 | |||||
| 6 | 8519823 | Hinge, Top To Panel |
|
- | |||||
| 7 | 8317308 | Pad, Front Panel |
|
- | |||||
| 8 | 3400085 | Screw, 10-32 X 1/2 |
|
- | |||||
| 9 | 8518891 | Rivet |
|
$ 14.07 | |||||
| 10 | 8518896 | Panel, Back |
|
- | |||||
| 11 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 12 | 8283364 | Pan, Bottom |
|
- | |||||
| 13 | 8054500 | Frame, Cabinet |
|
- | |||||
| 14 | 8300022 | Switch, Motor (2) |
|
$ 8.04 | |||||
| 15 | 8283353 | Spacer, Cabinet |
|
- | |||||
| 16 | W10854425 | Clip, Front Panel (Replaces: 8283335) |
|
Immediately | $ 16.34 | ||||
| 17 | 8299814 | Harness, Lower (includes 30) |
|
$ 113.99 | |||||
| 18 | 9724100 | Hose, Drain |
|
$ 22.89 | |||||
| 19 | 4389654 | Screw, 8-18 X 3/8 (Replaces: 8281159) |
|
$ 14.58 | |||||
| 20 | 8271831 | Spacer |
|
- | |||||
| 21 | 8318449 | Lock, Top (front) |
|
- | |||||
| 22 | 8532161 | Retainer, Drain Hose (storage) |
|
- | |||||
| 23 | 8541696 | Power Cord Assembly |
|
- | |||||
| 24 | 8283348 | Cover, Harness |
|
- | |||||
| 25 | W11733005 | Strain Relief (Replaces: 63848) |
|
$ 13.58 | |||||
| 26 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 27 | WP16123 | Washer, Inlet Hose (Replaces: 3976300) |
|
$ 8.16 | |||||
| 28 | WP89503 | Hose, Water Inlet ((red Coupler)) (Replaces: 3949369) |
|
Immediately | $ 24.09 | ||||
| 28 | WP89503 | Hose, Water Inlet ((blue Coupler)) (Replaces: 3949368) |
|
Immediately | $ 24.09 | ||||
| 29 | 8528318 | U-bend, Drain Hose |
|
- | |||||
| 30 | 8310651 | Clip, Harness (3) |
|
- | |||||
| 31 | 8528279 | Gusset, Harness |
|
- | |||||
| 32 | WP692400 | Nut, Push-in (Replaces: 692400) |
|
Immediately | $ 8.02 | ||||
| 33 | 9724675 | Clip, Drain Hose |
|
- | |||||
| 34 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3400891) |
|
Immediately | $ 14.72 | ||||
| 35 | WPW10339879 | Cable Tie (beaded) (Replaces: 3347868) |
|
$ 8.30 | |||||
| 36 | 8318208 | Retainer, Drain Hose |
|
- | |||||
| 37 | W10891954 | Screw, 8-18 X 3/8 (Replaces: 8281212) |
|
- | |||||
| 38 | 3400811 | Screw, 8-18 X 1.187 |
|
- | |||||
| 39 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 8.81 |
