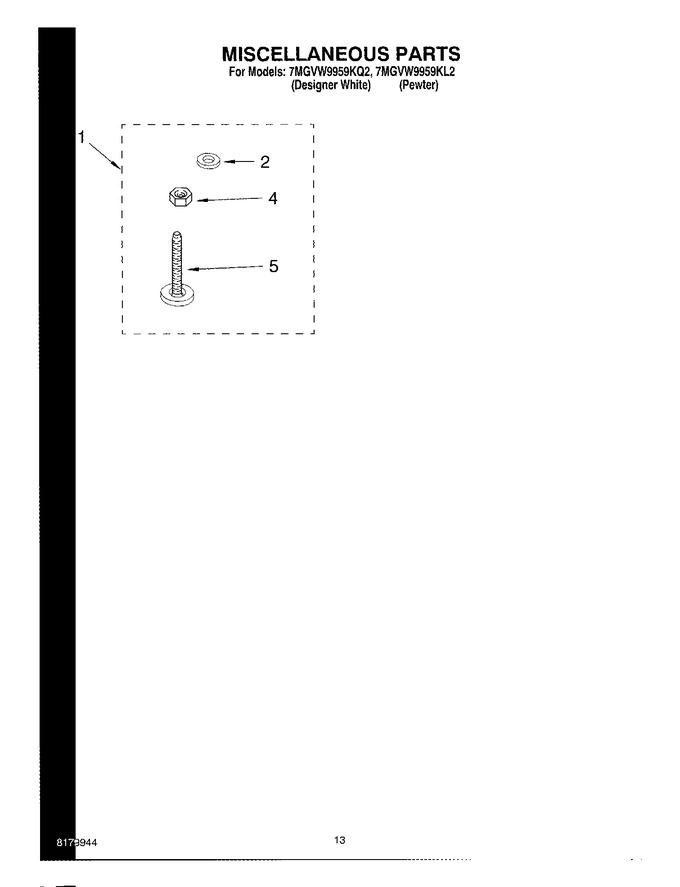

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8529946		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose (1-1/16 X 5/8) (4)   (Replaces: 3976300)				$ 8.16
4	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 7.55
5	8281198		Foot		Appelez-nous	-
5	285834		Siphon Break				$ 115.42
5	285835		Hose Connector			Immediately	$ 64.18
5	WP384496		Coupling, Hose   (Replaces: 384496)				$ 90.39
5	N/A		Installation Kit		Appelez-nous	-
5	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 109.61
5	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
5	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 29.61
5	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
5	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
5	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
5	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
5	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
