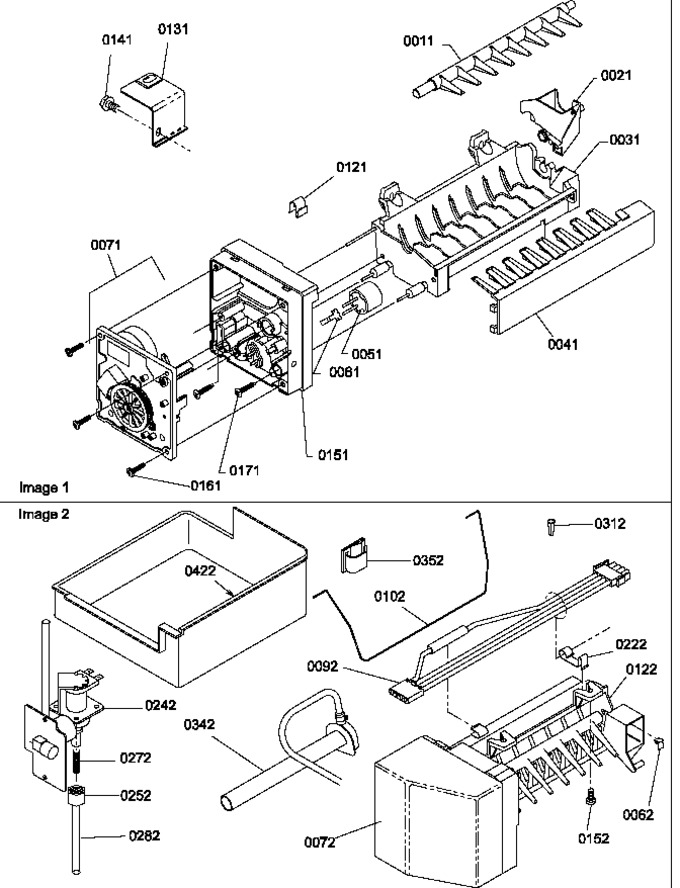

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	W10833899		Kit, Water Valve   (Replaces: 10524601)			Immediately	$ 253.55
11	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
21	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
31	D7824706Q		Assy, Mold & Heater   (Replaces: R0156669)			Immediately	$ 167.35
41	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
51	WP627985		N/a See Notes-thermostat   (Replaces: R0161060)				$ 114.64
61	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
62	B5720301		Clip		Appelez-nous	-
71	W10190935		Module & Mtr Assy,120v/60hz   (Replaces: R0167203)			Immediately	$ 110.07
72	WPW10289690		Cover, Ice Maker   (Replaces: 10519801)			Immediately	$ 8.82
92	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
102	WP67004028		Arm, I.m. Shut-off   (Replaces: 10884401)			Immediately	$ 95.92
121	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
122	D7824706Q		Ice Maker   (Replaces: D7824703)			Immediately	$ 167.35
131	B8391802		Bracket, I/m		Appelez-nous	-
141	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
151	WP2195914		Support   (Replaces: R0183121)				$ 109.80
152	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
161	R0186041		Screw		Appelez-nous	-
171	R0186040		Screw		Appelez-nous	-
222	10526701		Clamp, Wire		Appelez-nous	-
242	W10833899		Kit, Water Valve   (Replaces: 10524606)			Immediately	$ 253.55
252	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
272	A1055101		Spring, Antikink		Appelez-nous	-
282	B5705325		Tubing, Plastic		Appelez-nous	-
312	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
342	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 119.86
352	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
422	WP67001255		Use 10476207   (Replaces: 10476201)				$ 213.23
NI	10527010		Ic7 Bm Refrig Install/oper Ins		Appelez-nous	-
NI	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
NI	WP627843		Ejector   (Replaces: R0183119)				$ 87.78
NI	WP628356		Cup, Water Fill/bearing   (Replaces: R0156839)				$ 53.75
NI	D7824706Q		Assy, Mold & Heater   (Replaces: R0156669)			Immediately	$ 167.35
NI	WP2182124		Stripper, Ice   (Replaces: R0183120)				$ 90.35
NI	WP627985		N/a See Notes-thermostat   (Replaces: R0161060)				$ 114.64
NI	WP2315522		Retainer   (Replaces: R0191094)				$ 11.60
NI	W10190935		Module & Mtr Assy,120v/60hz   (Replaces: R0167203)			Immediately	$ 110.07
NI	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813004)			Immediately	$ 73.97
NI	WPW10289690		Cover, Ice Maker   (Replaces: 10519803)			Immediately	$ 8.82
NI	WP67004028		Arm, I.m. Shut-off   (Replaces: D7813101)			Immediately	$ 95.92
NI	C8979501		Label Diagnostic Im		Appelez-nous	-
NI	WP628379		Clip, Thermal Fuse   (Replaces: 10319801)				$ 11.10
NI	B8391801		Bracket, I/m		Appelez-nous	-
NI	M0211116		Screw, Sm		Appelez-nous	-
NI	WP2195914		Support   (Replaces: R0183121)				$ 109.80
NI	R0186041		Screw		Appelez-nous	-
NI	R0186040		Screw		Appelez-nous	-
NI	M0108001		Clamp, Tube		Appelez-nous	-
NI	10549601		Label, Caution (ice Maker)		Appelez-nous	-
NI	A3036901		Label Warranty		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
NI	A3124301		Plug		Appelez-nous	-
NI	10834701		Label, Im		Appelez-nous	-
