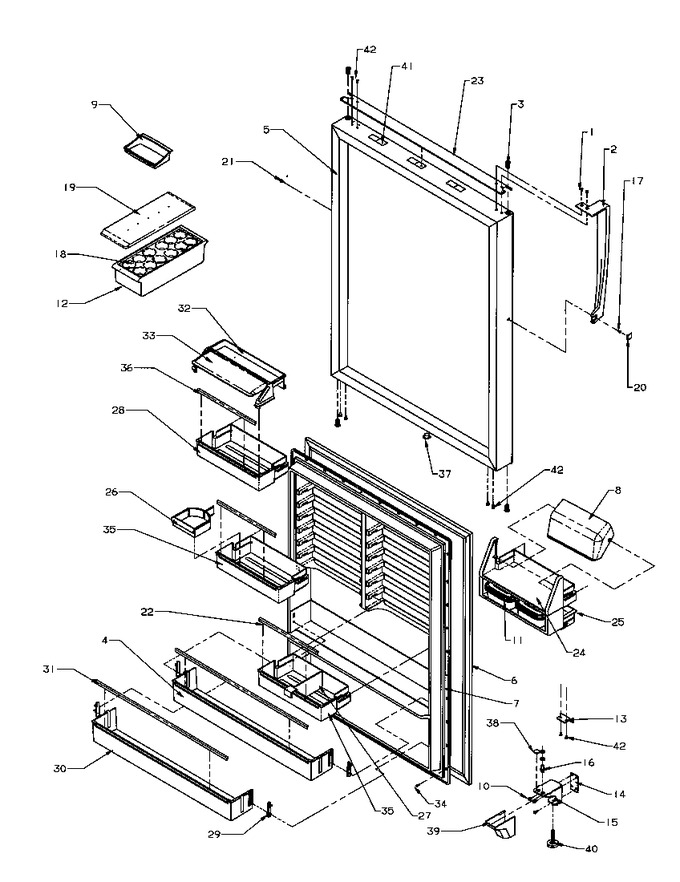

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 2 | 10253508 | Ref Handle Assy Bk |
|
- | |||||
| 3 | 10393803 | Bushing, Door (blk) |
|
- | |||||
| 4 | 10419101 | Retainer, Ref Door |
|
- | |||||
| 5 | 10481904EQ | Assy Ref. Dr Fm |
|
- | |||||
| 6 | 10456811 | Gasket,ref Dr(black) |
|
- | |||||
| 7 | 10461801 | Liner, Refr Door (19) |
|
- | |||||
| 8 | 10422605 | Door, Dairy |
|
- | |||||
| 9 | 10310901 | Tray, Butter |
|
- | |||||
| 10 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 11 | 10185001 | Container |
|
- | |||||
| 12 | 10423120 | Bin, Egg |
|
- | |||||
| 13 | W11708403 | Stop-black Door (Replaces: 10447103) |
|
Immediately | $ 14.75 | ||||
| 14 | 10447902 | Shim Hinge |
|
- | |||||
| 14 | 10447901 | Shim, Btm Hinge |
|
- | |||||
| 15 | 10825302 | Assy,hinge B-btm |
|
- | |||||
| 16 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 17 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 8.20 | ||||
| 18 | 10436504 | Tray, Egg |
|
- | |||||
| 19 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 20 | 10201810 | Cover, Handle Screw-blk |
|
- | |||||
| 21 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 22 | 10183938 | Trim, Door Shelf |
|
- | |||||
| 23 | Y10201504 | Cap, Door (tq18) |
|
- | |||||
| 24 | 10182702 | Shelf, Dairy |
|
- | |||||
| 25 | 10182802 | Shelf, Container Ser. |
|
- | |||||
| 26 | 10441101 | Hugger, Bottle (shelf Divider) |
|
- | |||||
| 27 | 10467501 | Snugger, Door Shelf (shelf Div |
|
- | |||||
| 28 | 10183006 | Shelf, Ref Door |
|
- | |||||
| 29 | 10202001 | Clip, Retainer |
|
- | |||||
| 30 | 10419201 | Retainer, Ref Door |
|
- | |||||
| 31 | 10183953 | Trim, Door Shelf |
|
- | |||||
| 32 | 10431101 | Shelf, Snack Stop |
|
- | |||||
| 33 | 10431007 | Door, Snack Stop |
|
- | |||||
| 34 | M0219730 | Screw |
|
$ 7.65 | |||||
| 35 | 10419901 | Shelf, Refrig. Door (19) |
|
- | |||||
| 36 | 10183962 | Trim, Door Shelf |
|
- | |||||
| 37 | M0310336 | Plug, Button (blk) |
|
- | |||||
| 38 | M0310331 | Plug, Button Almond |
|
- | |||||
| 39 | 10462701 | Cover, Hinge Lower (black) |
|
- | |||||
| 40 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 12.18 | |||||
| 41 | M0275163 | Tape Per Roll |
|
- | |||||
| 42 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 |
