Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9723241 Damper Asm (4) Appelez-nous -
2 8055179 Ball, Suspension (upper) Appelez-nous -
3 8054964 Socket, Suspension Special Order $ 5.51

4 9723335 Stabilizer, Suspension Special Order $ 51.22

5 8312710 Stud, Ball (2) Appelez-nous -
6 8271819 Link, Leveling Appelez-nous -
7 8054532 Clip, Leveling (2) Appelez-nous -
8 8054747 Foot, Rear (2) Special Order $ 44.31

9 8281198 Foot, Front (2) Appelez-nous -
10 WP3359452 Nut, 3/8-16 (2)   (Replaces: 3359452) In-Stock Immediately $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

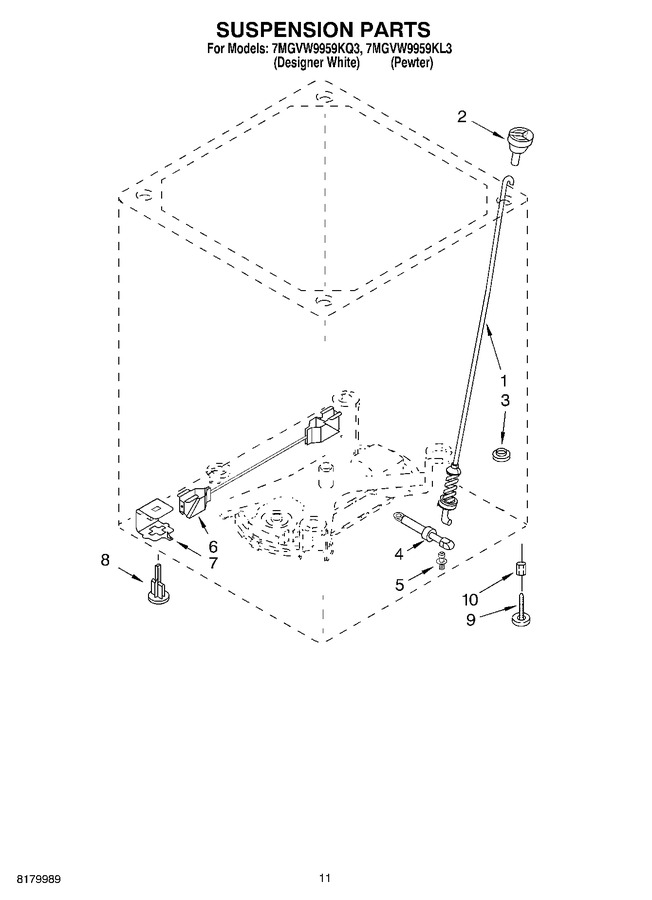

Diagram for 7MGVW9959KL3
