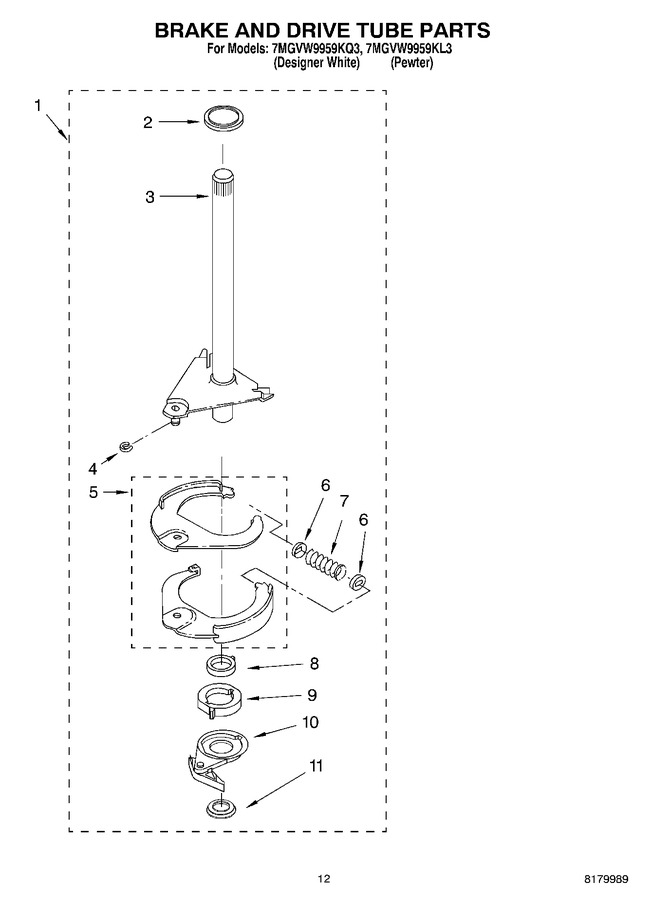

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8271972 | Tube Assembly (complete) |
|
$ 175.48 | |||||
| 2 | 9724189 | Ring, Thrust |
|
- | |||||
| 3 | 8318243 | Tube, Spin |
|
$ 125.90 | |||||
| 4 | W10083190 | Ring, ``e`` (Replaces: 64035) |
|
$ 11.70 | |||||
| 5 | 8271887 | Shoe, Brake |
|
- | |||||
| 6 | 8055260 | Cap, Brake Spring (2) |
|
- | |||||
| 7 | 8271969 | Spring, Brake |
|
- | |||||
| 8 | 8055314 | Sleeve, Cam |
|
- | |||||
| 9 | 8055263 | Cam, Brake Release |
|
- | |||||
| 10 | 8054992 | Driver, Brake Cam |
|
- | |||||
| 11 | 8282568 | Bearing, Thrust (upper) |
|
- |
