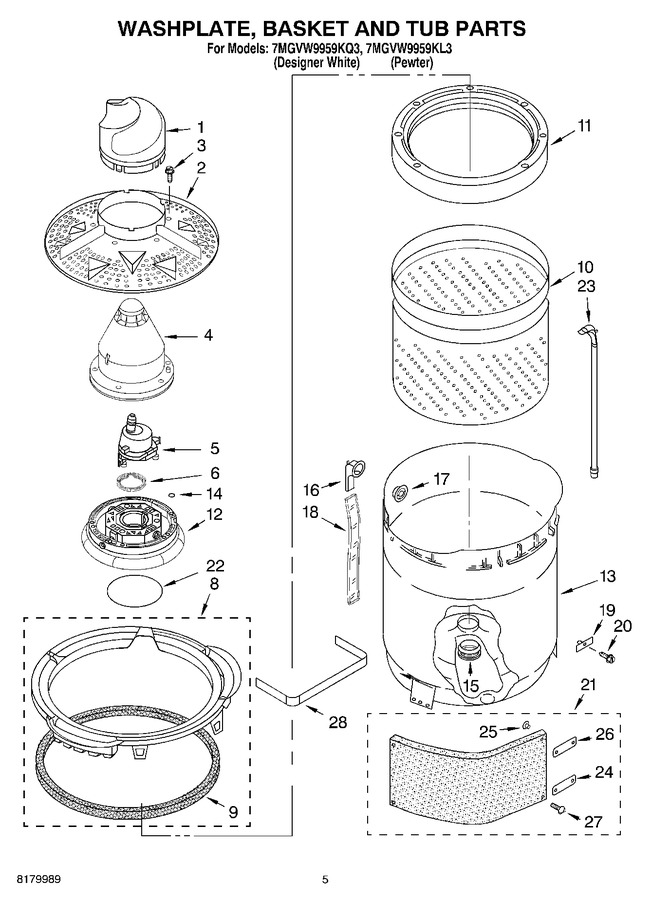

03 - Washplate, Basket And Tub Parts


04 - Control Panel Parts


05 - Brake, Motor And Pump Parts


06 - Suspension Parts


07 - Brake And Drive Tube Parts


08 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8315883		Dome, Washplate		Appelez-nous	-
2	8522194		Washplate (outer)		Appelez-nous	-
3	8282519		Bolt		Appelez-nous	-
4	8533210		Washplate (inner)		Appelez-nous	-
5	8519518		Leveler		Appelez-nous	-
6	8520855		Nut, Lock				$ 31.53
8	8317383		Tub Ring Assembly		Appelez-nous	-
9	8054355		Seal, Tub Ring				$ 6.92
10	8529754		Basket		Appelez-nous	-
11	9724323		Balance Ring				$ 72.67
12	8532052		U-joint				$ 194.06
13	8529943		Tub		Appelez-nous	-
14	8312686		Washer		Appelez-nous	-
15	8055288		Gasket Centerpost				$ 20.78
16	8283307		Tube, Overflow		Appelez-nous	-
17	8283308		Plug, Overflow		Appelez-nous	-
18	8055135		Bag, Overflow		Appelez-nous	-
19	9724609		Clip, Tub Retainer (4)		Appelez-nous	-
20	W10856122		Screw   (Replaces: 8281145)				$ 8.27
21	8055279		Absorber, Sound (tub)		Appelez-nous	-
22	8312689		Seal, O-ring (2.5 X 85 Mm)		Appelez-nous	-
23	8054989		Tube, Water Recirculation				$ 64.25
24	8055280		Strap, Absorber (lower)		Appelez-nous	-
25	8055272		Clip, Absorber		Appelez-nous	-
26	8055273		Strap, Absorber (upper)		Appelez-nous	-
27	3351189		Retainer, Push-in		Appelez-nous	-
28	8318231		Shield, Splash (tub Ring)		Appelez-nous	-
