SELECT A DIAGRAM

01 - Top And Lid Parts


02 - Cabinet And Frame Parts


03 - Washplate, Basket And Tub Parts

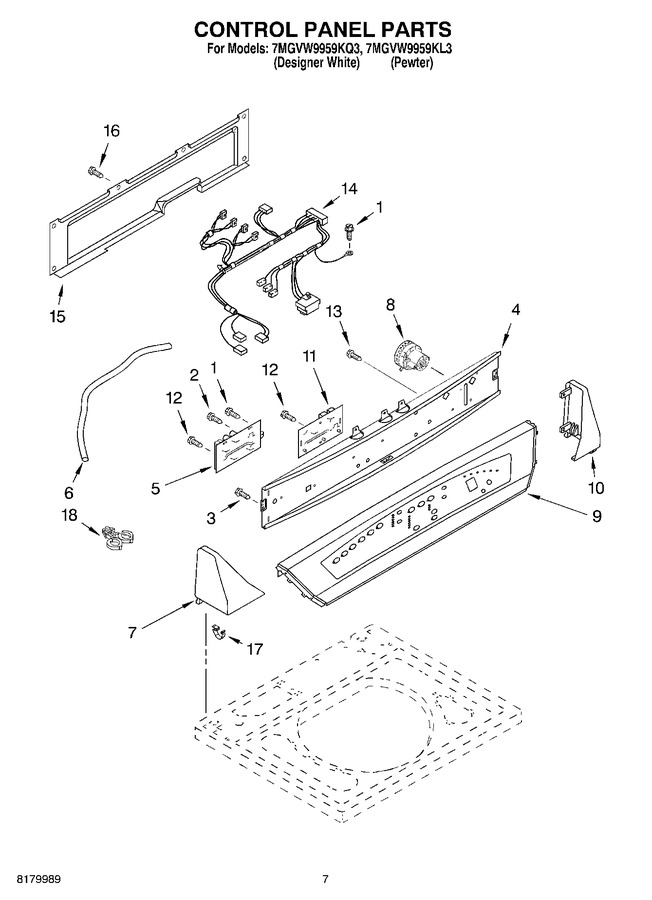

04 - Control Panel Parts


05 - Brake, Motor And Pump Parts


06 - Suspension Parts


07 - Brake And Drive Tube Parts


08 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3428971)			Immediately	$ 7.30
2	3196172		Screw, 6-19 X 3/8			Immediately	$ 13.47
3	WP304231		Screw, 8-16 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
4	8299690		Bracket, Control		Appelez-nous	-
5	8541034		Control, Motor (electronic)				$ 274.71
6	WP353244		Hose, Pressure Switch (2)   (Replaces: 8054454)			Immediately	$ 59.93
7	8532115		Cap, End (l.h.) (includes Item 17) (white)		Appelez-nous	-
7	8532116		Cap, End (l.h.) (includes Item 17) (pewter)		Appelez-nous	-
8	8054766		Switch, Pressure (operating - Marked ``opr``)		Appelez-nous	-
9	8532067		Panel, Console (pewter)		Appelez-nous	-
9	8532066		Panel, Console (pearl)		Appelez-nous	-
10	8532113		Cap, End (r.h.) (includes Item 17) (white)		Appelez-nous	-
10	8532114		Cap, End (r.h.) (includes Item 17) (pewter)		Appelez-nous	-
11	8542693		Control, Machine (electronic)		Appelez-nous	-
12	1166054		Screw		Appelez-nous	-
13	WP681414		Screw, 10-32 X 1/2   (Replaces: 3372525)			Immediately	$ 8.47
14	8529923		Harness, Wiring		Appelez-nous	-
15	8299987		Panel, Rear (console)		Appelez-nous	-
16	WP693995		Screw, 8-18 X 5/8   (Replaces: 693995)			Immediately	$ 7.55
17	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
18	8055297		Clip, Pressure Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
