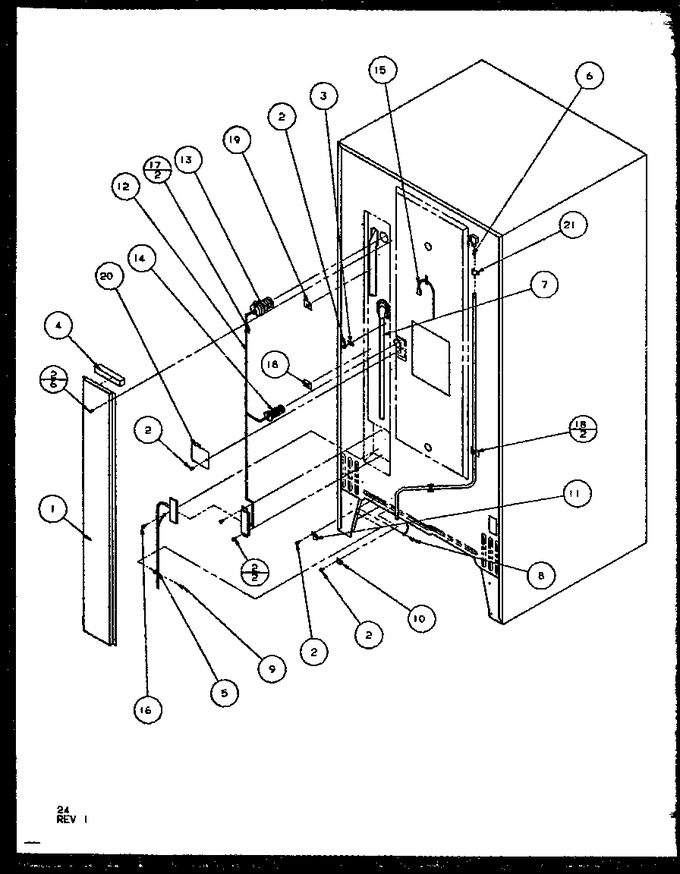

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7539415 | Heat Exchanger Cover |
|
- | |||||
| 2 | WP489069 | Screw-sd (Replaces: M0233704) |
|
Immediately | $ 7.86 | ||||
| 3 | B8372901 | Clamp |
|
- | |||||
| 4 | A3030330 | Gasket,per Ft |
|
- | |||||
| 5 | M0103901 | Clamp |
|
- | |||||
| 7 | D7653906 | Drain Tube |
|
- | |||||
| 8 | M0253916 | Screw |
|
- | |||||
| 9 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.82 | ||||
| 10 | M0102325 | Clamp |
|
- | |||||
| 11 | M0102329 | Clamp |
|
- | |||||
| 12 | 10104901 | Harness, Cabinet |
|
- | |||||
| 13 | 10110601 | Grommet |
|
- | |||||
| 14 | 10110701 | Grommet |
|
- | |||||
| 15 | B8310503 | Cord - Power |
|
- | |||||
| 16 | M0232317 | Screw |
|
- | |||||
| 17 | M0321210 | Tie, Elec |
|
- | |||||
| 18 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.78 | |||||
| 19 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 20 | 10110202 | Wire Cover |
|
- | |||||
| 21 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 |
