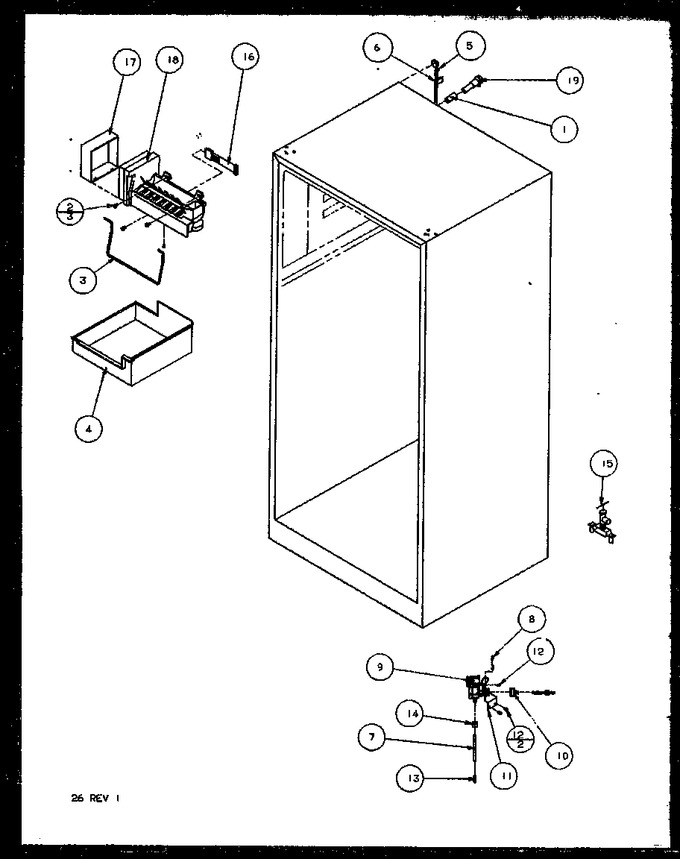

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3127401		Tube		Appelez-nous	-
2	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
3	WP67004028		Arm, I.m. Shut-off   (Replaces: D7813101)			Immediately	$ 91.35
4	D7621119		Pan, Ice		Appelez-nous	-
5	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.78
6	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
7	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 12.43
8	B8374701		Clip, Water Valve		Appelez-nous	-
9	4318047		Valve-water K   (Replaces: D7712603)			Immediately	$ 74.09
10	10244901		Coupling		Appelez-nous	-
11	D7701601		Brkt, Water Valve		Appelez-nous	-
12	681390		Screw   (Replaces: M0251015)				$ 13.06
13	A1055101		Spring, Antikink		Appelez-nous	-
14	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 10.97
15	A3034801		Saddle Valve		Appelez-nous	-
16	WPD7813010		Harness, Ice Maker Mod   (Replaces: D7813002)			Immediately	$ 73.97
17	WPW10289690		Cover, Ice Maker   (Replaces: B5724506)			Immediately	$ 8.40
18	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 167.35
19	B8318808		Fill Tube Assy		Appelez-nous	-
NI	10414701		Icemaker Instruction		Appelez-nous	-
NI	M0102301		Clamp		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
NI	A3124301		Plug		Appelez-nous	-
