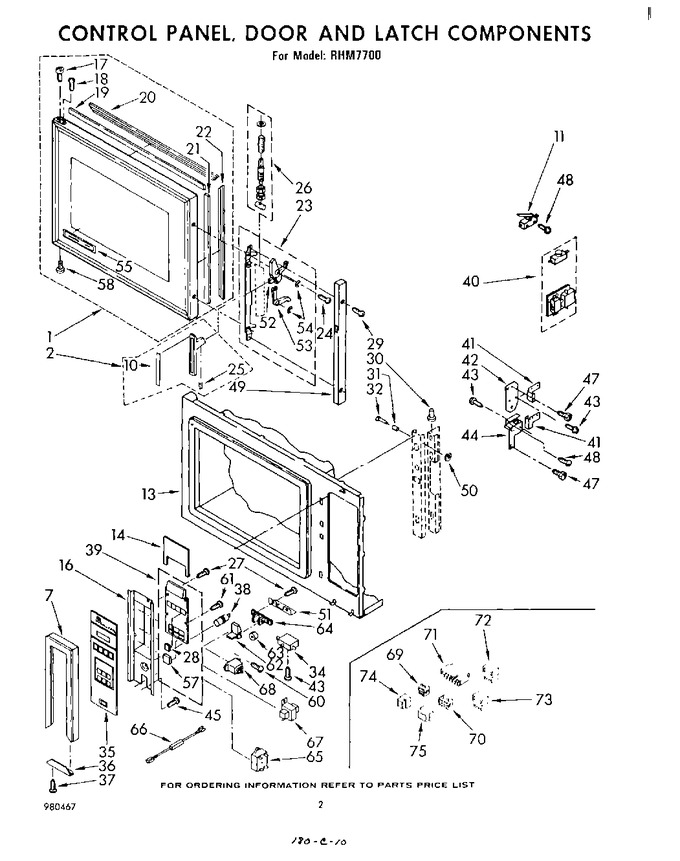

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328374		Door, Complete		Appelez-nous	-
2	328370		Handle, Door		Appelez-nous	-
7	309547		Frame, Control Panel		Appelez-nous	-
10	309365		Insert, Handle		Appelez-nous	-
11	308416		Switch, Secondary		Appelez-nous	-
13	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	310000		Barrier		Appelez-nous	-
16	309535		Bracket, Control		Appelez-nous	-
17	307536		Screw, 8d X .312 (2)		Appelez-nous	-
18	307537		Xscrew, 8-32 X .312 (6)		Appelez-nous	-
19	307544		Seal, Top & Bottom (2)		Appelez-nous	-
20	307545		Retainer, Top & Bottom Seal (2)		Appelez-nous	-
21	307543		Seal, Side (2)		Appelez-nous	-
22	307546		Retainer, Side Seal (2)		Appelez-nous	-
23	328012		Latch, Door		Appelez-nous	-
24	309080		Xscrew, 8-32 X 3/8 (2)		Appelez-nous	-
25	307577		Setscrew, 8-32		Appelez-nous	-
26	261853		Plunger, Latch		Appelez-nous	-
27	309778		Screw, Tapping		Appelez-nous	-
28	309585		Button, Small		Appelez-nous	-
29	307608		Screw, 8d X 5/16 (2)		Appelez-nous	-
30	307578		Bumper		Appelez-nous	-
31	307604		Roller, Latch		Appelez-nous	-
32	307603		Pin, Roller (2)		Appelez-nous	-
34	328611		Switch, Start		Appelez-nous	-
35	309658		Panel, Control		Appelez-nous	-
36	309620		End Panel		Appelez-nous	-
37	309170		Screw, 8-18bt X .88 (2)		Appelez-nous	-
38	307636		Light, Pilot (on Light)		Appelez-nous	-
39	328457		Control & Button Assembly		Appelez-nous	-
40	832768		Switch Kit, Door (kit Contains 2 Switches. Both Switches Must Be Replaced If One Fails.) (note: Fuse		Appelez-nous	-
41	307611		Insulator, Switch (top)		Appelez-nous	-
42	307586		Plate, Top Switch Mounting		Appelez-nous	-
43	98106		Screw, 6-32 X 7/8 (8)		Appelez-nous	-
44	307606		Bracket, Switch		Appelez-nous	-
45	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 7.30
47	WP250830		Screw, 8-32 X 1/2 (7)   (Replaces: 254562)				$ 7.90
48	246135		Screw, 8d X 5/16		Appelez-nous	-
49	307584		End Cap, Door		Appelez-nous	-
50	307605		Ring, Retaining (2)		Appelez-nous	-
51	309659		Bracket, Switch		Appelez-nous	-
52	307556		Handle, Cam		Appelez-nous	-
53	307596		Latch, Concealed		Appelez-nous	-
54	308187		Ring, ``e``		Appelez-nous	-
55	309153		Label, Door				$ 39.92
57	309584		Button, Large		Appelez-nous	-
58	308785		Pin, Hinge		Appelez-nous	-
60	WP486754		Screw   (Replaces: 246119)				$ 7.21
61	307730		Screw		Appelez-nous	-
62	358564		Lever		Appelez-nous	-
63	309779		Spacer		Appelez-nous	-
64	358563		Pivot		Appelez-nous	-
65	307634		Relay, Latching		Appelez-nous	-
66	328023		Resistor, 30hm		Appelez-nous	-
67	309622		Transformer, Control		Appelez-nous	-
68	308560		Relay, Door & Control (2)		Appelez-nous	-
69	309406		Block, Disconnect (9 Pin Male) (uses 309407 Male Terminal)		Appelez-nous	-
70	309405		Block, Disconnect (12 Pin Male) (uses 309407 Male Terminal)		Appelez-nous	-
71	309606		Block, Disconnect (edge Connector) (uses 60279 Edge Connector)		Appelez-nous	-
72	309123		Block, Disconnect (blue) (uses 308569 Spade Terminal)		Appelez-nous	-
73	308568		Block, Disconnect (white) (uses 308569 Spade Terminal)		Appelez-nous	-
74	309409		Block, Disconnect (9 Pin Female) (uses 309410 Female Terminal)		Appelez-nous	-
75	309408		Block, Disconnect (12 Pin Female) (uses 309410 Female Terminal)		Appelez-nous	-
