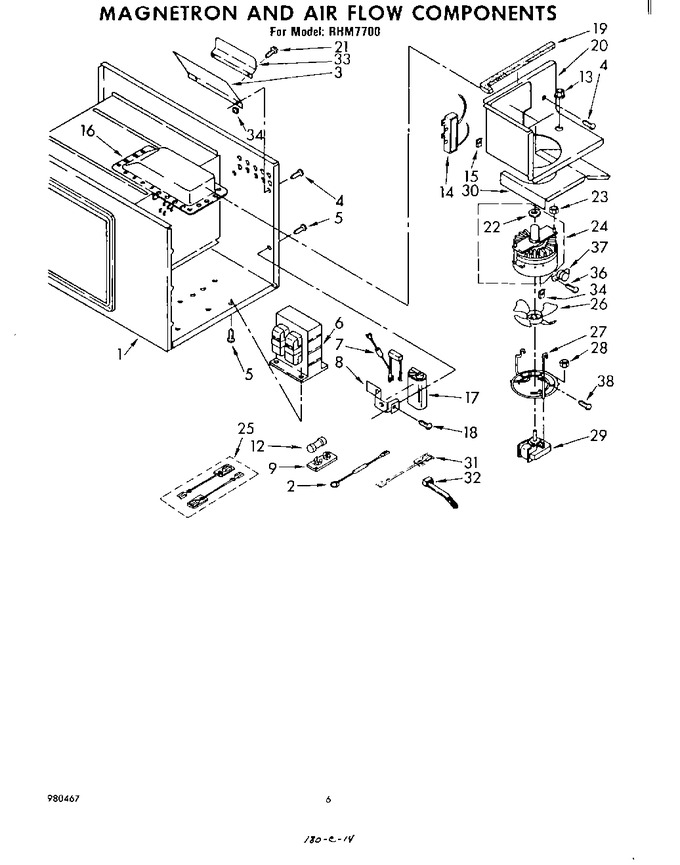

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	328185		Varistor Assembly		Appelez-nous	-
3	307635		Deflector, Air		Appelez-nous	-
4	254217		Screw, 8a X 3/8		Appelez-nous	-
5	258857		Screw, 10a X 3/8		Appelez-nous	-
6	307676		Transformer		Appelez-nous	-
7	328057		Rectifier, High Voltage (includes Illus. 15)		Appelez-nous	-
8	308572		Bracket, Capacitor		Appelez-nous	-
9	309795		Block, Fuse		Appelez-nous	-
12	WPW10017410		Fuse   (Replaces: 309796)			Immediately	$ 20.01
13	308410		Bushing, Wire		Appelez-nous	-
14	309623		Relay, Reed		Appelez-nous	-
15	98084		Clip (1)		Appelez-nous	-
17	309587		Capacitor		Appelez-nous	-
18	258857		Screw, 10-32 X 1/2		Appelez-nous	-
19	WP854334		Seal, Air Vent   (Replaces: 307618)				$ 12.55
20	307529		Duct, Cooling Air		Appelez-nous	-
21	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
22	310302		Gasket, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
22	307849		Gasket, Magnetron (use W/litton Magnetron)		Appelez-nous	-
23	310300		Nut, Mounting (nut, 5mm-0.8 Flange (2) (use W/panasonic Magnetron))		Appelez-nous	-
23	WP112432		Nut, Mounting (nut, 10-32 Hex (2) (use W/litton Magnetron))   (Replaces: 112432)				$ 7.77
24	832805		Magnetron Kit, Panasonic		Appelez-nous	-
25	261945		Wire Kit, High Voltage (magnetron)		Appelez-nous	-
26	307535		Blade, Fan		Appelez-nous	-
27	307534		Mount, Fan Motor		Appelez-nous	-
28	309486		Nut, Hex (6-32)		Appelez-nous	-
29	307565		Motor, Fan		Appelez-nous	-
30	310419		Shield, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
31	309084		Wire, High Voltage (capacitor)		Appelez-nous	-
32	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.47
33	308219		Deflector, Exhaust		Appelez-nous	-
34	338177		Clip		Appelez-nous	-
36	246131		Screw, 6a X 3/8		Appelez-nous	-
37	307564		Thermostat		Appelez-nous	-
38	WP90767		Screw, 8a X 3/8 (hex Head)   (Replaces: 90767)			Immediately	$ 7.43
