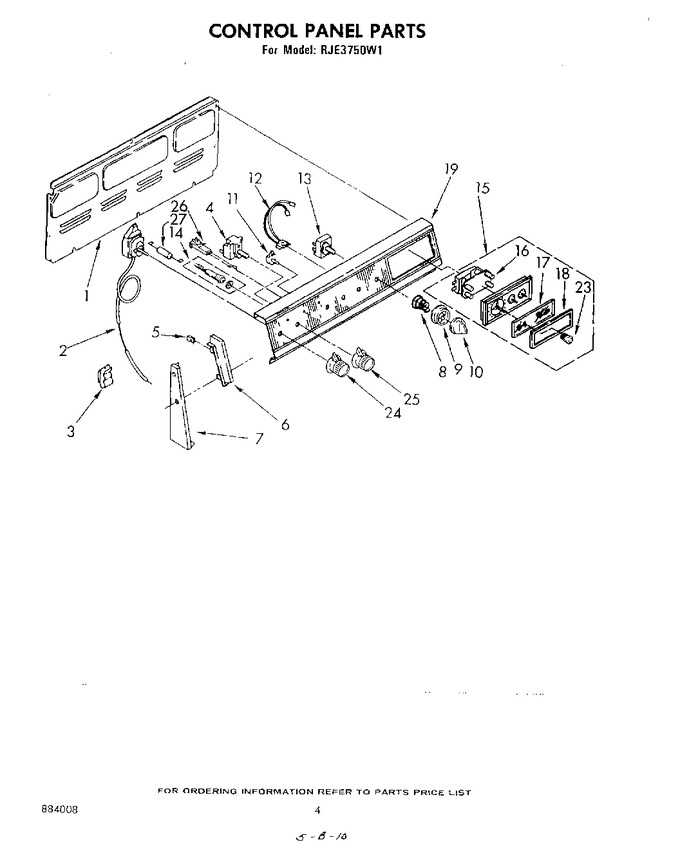

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 308157 | Cover, Rear |
|
- | |||||
| 2 | 310016 | Thermostat, Oven |
|
- | |||||
| 2 | 487384 | Screw, 6-32 X 1/2 |
|
- | |||||
| 3 | 309211 | Clip, Tube |
|
- | |||||
| 4 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 7.89 | |||||
| 4 | 310009 | Switch, Selector |
|
- | |||||
| 5 | 98084 | Clip, End Cap |
|
- | |||||
| 6 | 308146 | End Cap, L.h. |
|
- | |||||
| 6 | 308144 | End Cap, R.h. |
|
- | |||||
| 7 | 308854 | End Trim (r.h.) |
|
- | |||||
| 7 | WP3390631 | Screw, 8a X 3/8 (2) (Replaces: 309112) |
|
$ 8.25 | |||||
| 7 | 308858 | End Trim (l.h.) |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 307828 | Spring, Bezel (4) |
|
- | |||||
| 9 | 307456 | Bezel, Control Knob (4) |
|
$ 31.10 | |||||
| 10 | WP307458 | Knob, Control (4) (Replaces: 307458) |
|
$ 20.07 | |||||
| 11 | 241266 | Nut |
|
- | |||||
| 11 | 255335 | Switch, Pushbutton |
|
- | |||||
| 12 | 310327 | Light, Indicator (surface Unit) (includes Lens) |
|
- | |||||
| 13 | W10900107 | Switch, Infinite (use W/6`` Surface Unit) (Replaces: 311837) |
|
Immediately | $ 57.63 | ||||
| 13 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 13 | W10900107 | Switch, Infinite (use W/8`` Surface Unit) (Replaces: 311836) |
|
Immediately | $ 57.63 | ||||
| 14 | 310393 | Light, Indicator (clean) |
|
- | |||||
| 15 | 310792 | Clock, Complete (includes 16, 17, 18 & 23) |
|
- | |||||
| 16 | 309822 | Motor, Timer |
|
- | |||||
| 17 | 309821 | Glass, Clock |
|
- | |||||
| 18 | 309823 | Bezel, Timer |
|
- | |||||
| 19 | WP488627 | Screw, 8a X 1/2 (Replaces: 338156) |
|
$ 8.11 | |||||
| 19 | W11693756 | Screw, 8-18 X 5/8 (2) (Replaces: 357670) |
|
Immediately | $ 14.76 | ||||
| 19 | 307831 | Screw, 8a X 5/8 (4) |
|
- | |||||
| 19 | 312512 | Control Panel |
|
- | |||||
| 19 | WP681414 | Screw, 10-32 (ground) (Replaces: 343631) |
|
Immediately | $ 8.47 | ||||
| 23 | 308440 | Knob, Timer |
|
- | |||||
| 24 | 328709 | Knob, Thermostat |
|
- | |||||
| 25 | 328707 | Knob, Selector |
|
- | |||||
| 26 | 310962 | Light, Indicator |
|
- | |||||
| 27 | 328923 | Resistor & Terminal |
|
- |
