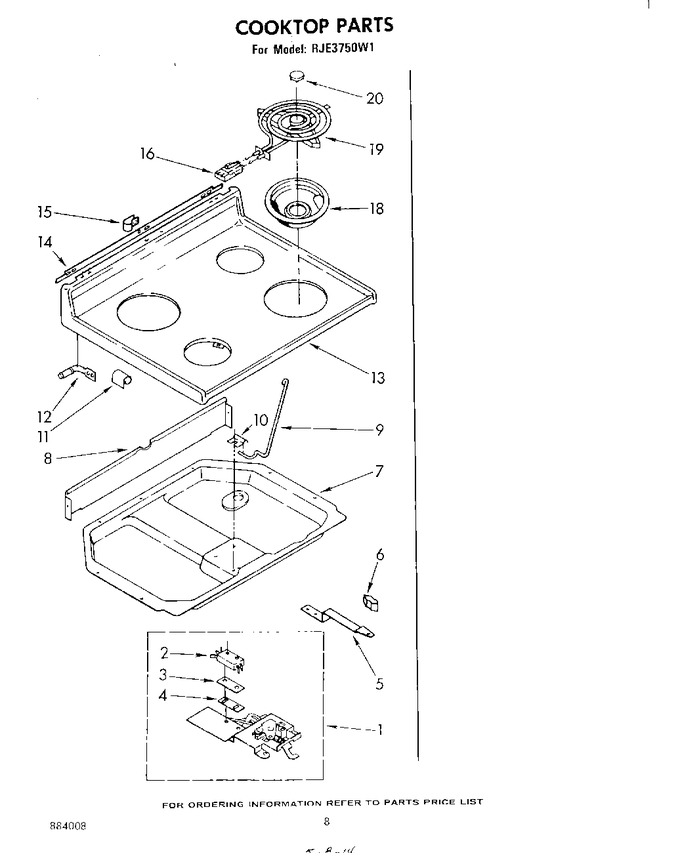

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 328585 | Latch Assembly (pyro) |
|
- | |||||
| 2 | 308185 | Safety Switch |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 310100 | Terminal |
|
- | |||||
| 5 | 307976 | Handle, Latch |
|
- | |||||
| 5 | 311056 | Screw (2) |
|
- | |||||
| 5 | 308422 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 5 | WP488627 | Screw, 8a X 1/2 (Replaces: 338156) |
|
$ 8.11 | |||||
| 6 | 307977 | Knob, Latch |
|
- | |||||
| 7 | WP3390631 | Screw, 10a X 3/8 (6) (Replaces: 309112) |
|
$ 8.25 | |||||
| 7 | 307929 | Burner Box |
|
- | |||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 307973 | Shield, Wiring |
|
- | |||||
| 9 | 307968 | Rod, Cooktop |
|
- | |||||
| 9 | WP681414 | Screw, 10-32 Hex (ground) (3) (Replaces: 343631) |
|
Immediately | $ 8.47 | ||||
| 10 | WP3390631 | Screw, 10a X 3/8 (Replaces: 309112) |
|
$ 8.25 | |||||
| 10 | 307967 | Retainer, Cooktop |
|
- | |||||
| 11 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 12 | WP308544 | Screw, 10-24 X 1/2 (4) (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 12 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 13 | 307865 | Cooktop (new Avocado) |
|
- | |||||
| 13 | 307864 | Cooktop (coffee) |
|
- | |||||
| 13 | 307866 | Cooktop (white) |
|
- | |||||
| 13 | 307871 | Cooktop (almond) |
|
- | |||||
| 13 | 307863 | Cooktop (harvest Gold) |
|
- | |||||
| 14 | 309232 | Barrier Strip |
|
- | |||||
| 14 | WP308544 | Screw, 10-24 X 1/2 (4) (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 15 | WP308544 | Screw, 10-24 X 1/2 (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 15 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 11.76 | |||||
| 16 | WP313808 | Screw 6-32 X 1/4 (4) (Replaces: 311932) |
|
$ 8.30 | |||||
| 16 | 330031 | Receptacle Clip (4) (Replaces: 258858) |
|
Immediately | $ 16.09 | ||||
| 18 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 308540) |
|
Immediately | $ 21.82 | ||||
| 18 | WPW10196406 | Reflector Pan (6`` (2)) (Replaces: 308539) |
|
Immediately | $ 13.39 | ||||
| 19 | WP660532 | Unit, Surface (6`` L.f. & R.r. (alternate) (2)) (Replaces: 309334) |
|
Immediately | $ 41.00 | ||||
| 19 | WP660533 | Unit, Surface (8`` R.f. & L.r. (alternate) (2)) (Replaces: 309214) |
|
Immediately | $ 43.86 | ||||
| 19 | WP660532 | Unit, Surface (6`` L.f. & R.r. (alternate) (2)) (Replaces: 309250) |
|
Immediately | $ 41.00 | ||||
| 19 | WP660533 | Unit, Surface (8`` R.f. & L.r. (alternate) (2) (includes Illus. 19)) (Replaces: 309340) |
|
Immediately | $ 43.86 | ||||
| 20 | 309195 | Medallion (4) |
|
- |
